Fork End Slot Milling Machine
CH-10-14
1 set
Shenzhen Sea Port of China
Quantity
- bicycle slot milling machine of bicycle tube is a special equipment for milling front and rear fork ends slot which connects dropouts.suitable for processing front & rear fork ends slot.
- Place of Origin:China
- Function:Milling slot
- Application:Round or flat tubes
- Diameter of tube:dia meter max 31.8mm
- Length of tube:220~550 mm
- Diameter of saw:dia 125mm
- Operation mode:Semi-automatic
- Control method:Relay
- Start mode:Switch
- Pneumatic working pressure:0.4~0.6 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

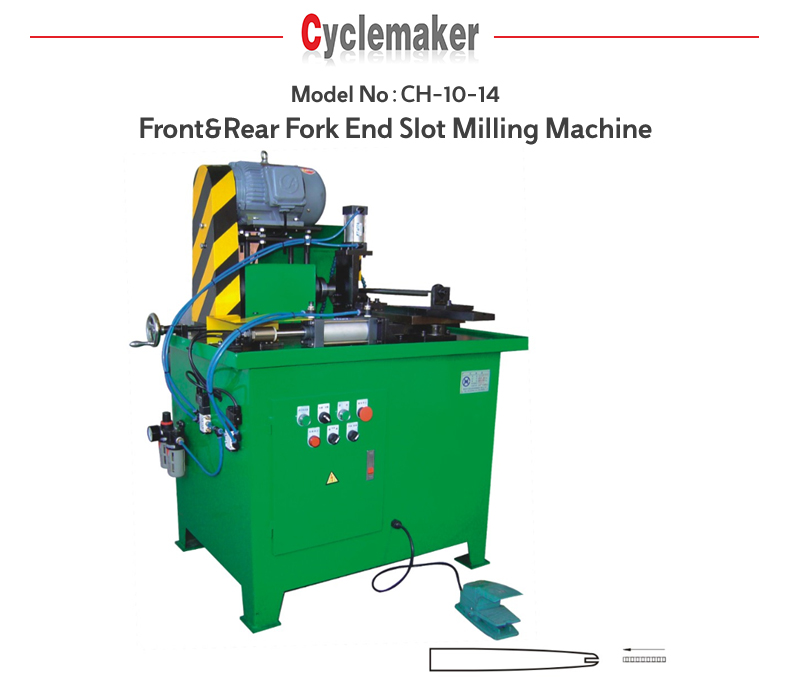

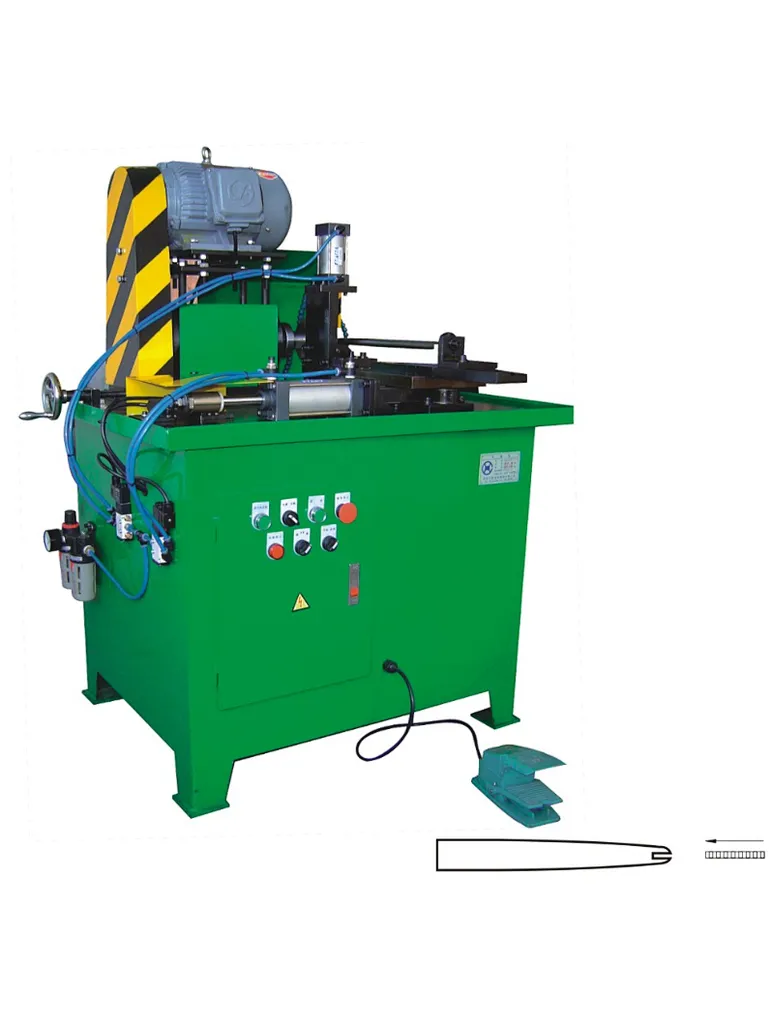

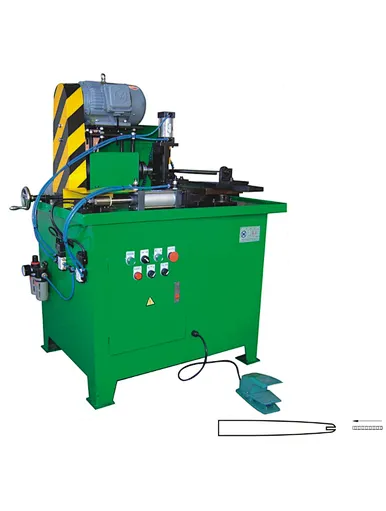

| bicycle slot milling machine of bicycle tube | Model：CH-10-14 | |||||||||
Description： | ||||||||||
1. bicycle slot milling machine of bicycle tube is a special equipment for milling front and rear fork ends slot which connects dropouts.suitable for processing front & rear fork ends slot. | ||||||||||
2. Easy adjustment, quick mold change, high effciency, stable performance. | ||||||||||
3. It adopt cylinder to promote the workpiece to forward and backward, Travel switch controls journey, Cycle-cooling system. | ||||||||||
4. Simple mould can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Milling slot | |||||||||
Application | Round or flat bicycle tube | |||||||||
Processing diameter | MAX. Φ31.8 mm | |||||||||
Processing length | 220~550 mm | |||||||||
Diameter of saw | Φ125 | |||||||||
Capacity | 700~1000 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 3 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Switch | |||||||||
Pneumatic working pressure | 0.4~0.6 MPa | |||||||||
Color | Gray | |||||||||
Size | 1050×750×1600 mm | |||||||||
Weight | 350 KG | |||||||||
Products Description
Product Code | CH-10-14 bicycle slot milling machine of bicycle tube |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
