Suspension Fork Inner Bush Reaming Machine (Adjustable center distance, hydraulic)
CH-30-37
1 set
Shenzhen Sea Port of China
Quantity
- bicycle reaming machine of bicycle front fork is used for reaming the suspension front fork inner bush, it's suitable for many size of processing suspension front fork inner bush.
- Place of Origin:China
- Function:Reaming processing
- Application:Suspension fork inner bush
- Operation Mode:Semi-automatic
- Control Mode:PLC
- Start mode:pedal switch
- Hydraulic system pressure:3 Mpa
- Max,system pressure:7 Mpa
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

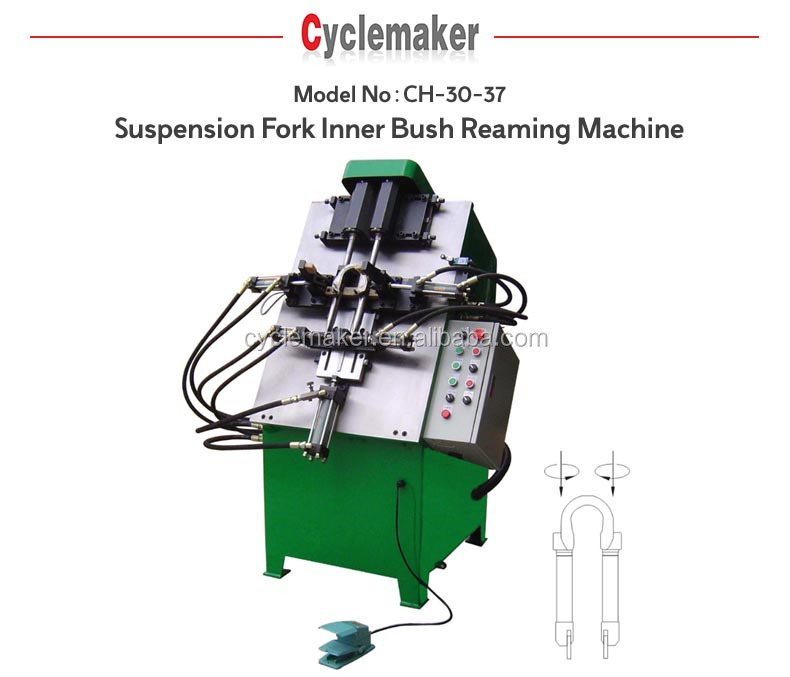

Suspension Fork Inner Bush Reaming Machine (Adjustable center distance, hydraulic) | Model No.：CH-30-37 | |||||||||
Description： | ||||||||||
1. This machine is used for reaming the suspension front fork inner bush, it's suitable for many size of processing suspension front fork inner bush; | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting hydraulic cylinder to clamp fork leg and dropouts tightly; Position switch controls the processing stroke. Center distance can be adjusted as required. | ||||||||||
4. Mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Reaming processing | |||||||||
Application | Suspension fork inner bush | |||||||||
Center distance | 95~140 mm | |||||||||
Capacity | 150~200 PCS∕HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 3 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Pedal switch | |||||||||
Hydraulic working pressure | 3 MPa | |||||||||
Max.system pressure | 7 MPa | |||||||||
COLOR | Green | |||||||||
Size | 1100×1100×1700 mm | |||||||||
Weight | 600 KG | |||||||||
Product Code | CH-30-37 Suspension Fork Inner Bush Reaming Machine (Adjustable center distance, hydraulic) |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
