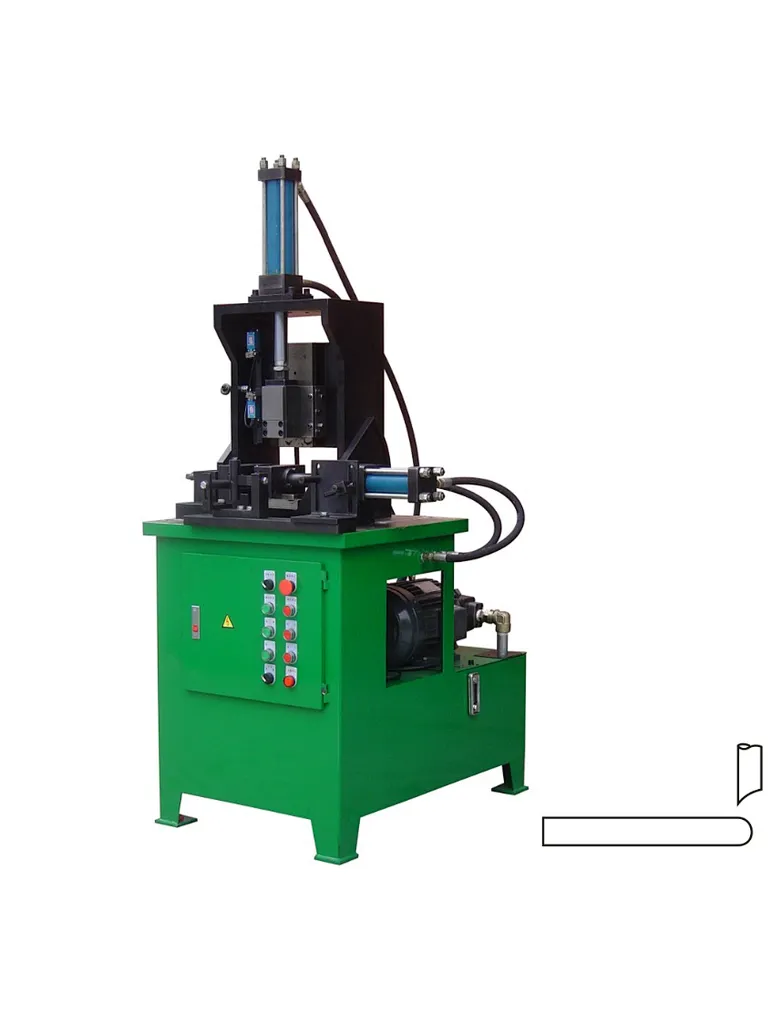

Tube Single Head Mitering Machine
CH-10-03A
1 set
Shenzhen Sea Port of China
Quantity
- bicycle mitering machine of bicycle tube is a special equipment for mitering tubes (or bending tube) and it's suitable for various coss section
- Place of Origin:China
- Function:Mitering tube end
- Application:Round or special-shaped tubes
- Processing dia.:Max. dia meter 60 mm
- Processing Leghth:200~700 mm
- Mitering angle:35°~90°
- Hydraulic working pressure:6 MPa
- Pneumatic system pressure:3.5 MPa
- Max.system pressure:8 MPa
- Control method:Relay
- Start mode:Foot switch
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

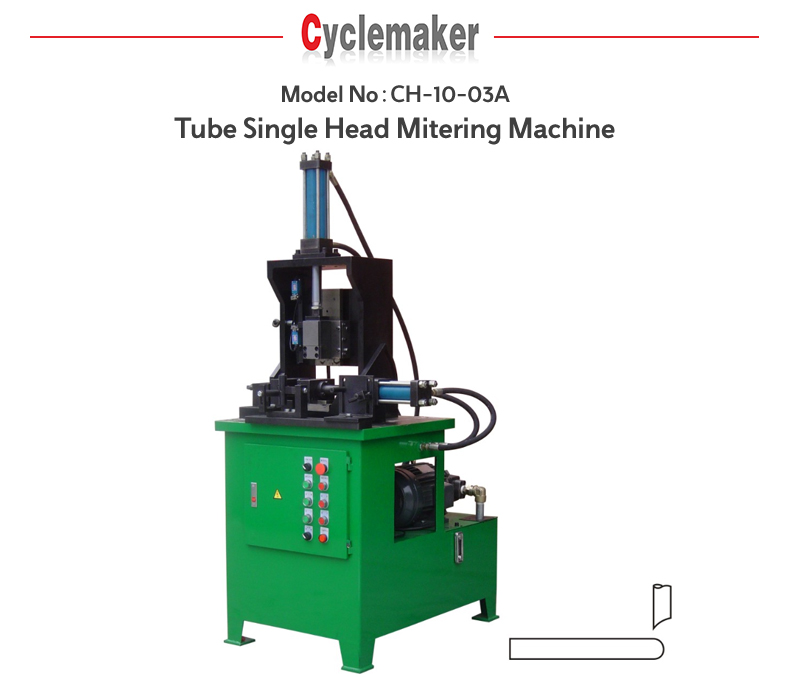

| bicycle tube single head mitering machine | Model：CH-10-03A | |||||||||
Description： | ||||||||||
1. bicycle tube single head mitering machine is a special equipment for mitering tubes (or bending tube) and it's suitable for various coss section; | ||||||||||
2. Easy to adjust equipment, tool change fast, high efficiency, stable performance. | ||||||||||
3. Adopt hydraulic clinder to promot the punching die forward and backward, position switch controlled the cylinder stroke; | ||||||||||
4. Punching die and Clamping mold are simple and can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Mitering tube end | |||||||||
Application | Round or special-shaped tubes | |||||||||
Processing Dia. | Max. Φ60 mm | |||||||||
Processing Leghth | 200~700 mm | |||||||||
Mitering angle | 35°~90° | |||||||||
Capacity | 600~700 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 3.75 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control Mode | Relay | |||||||||
Start Mode | Foot switch | |||||||||
Hydraulic working pressure | 6 MPa | |||||||||
Max.system pressure | 8 MPa | |||||||||
Color | Green | |||||||||
Size | 1000×900×1800 mm | |||||||||
Weight | 800 KG | |||||||||
Products Description
Product Code | CH-10-03ATube Single Head Mitering Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
