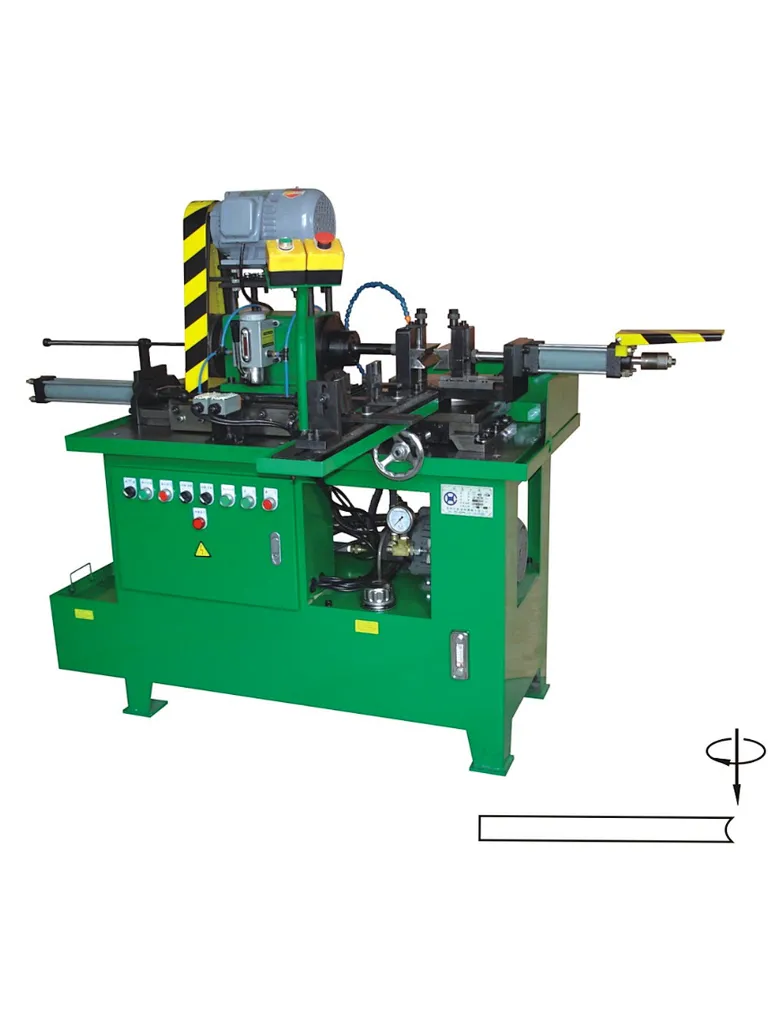

Single Head Milling Machine
CH-10-05A
1 set
Shenzhen Sea Port of China
Quantity
- bicycle milling machine of bicycle tube is a special equipment for milling tube ends
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

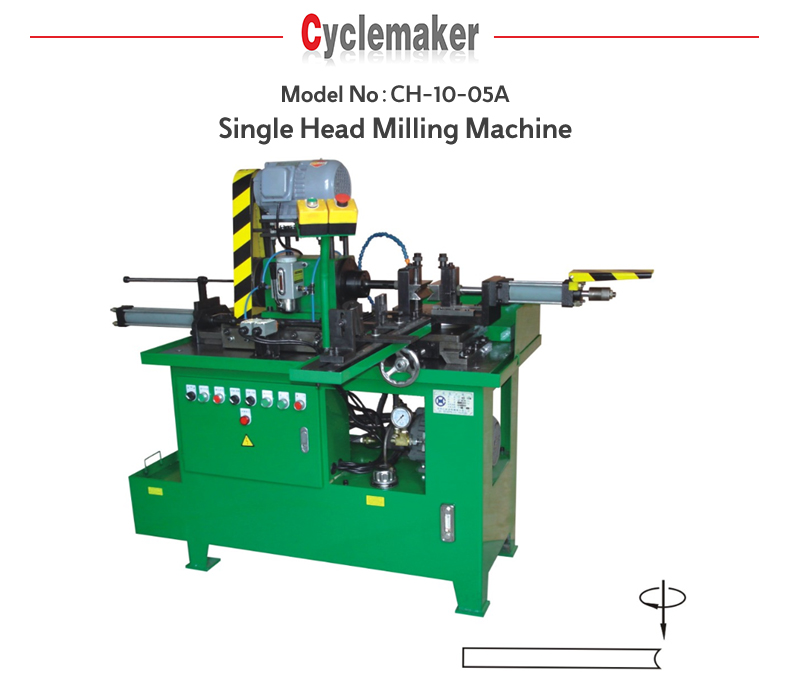

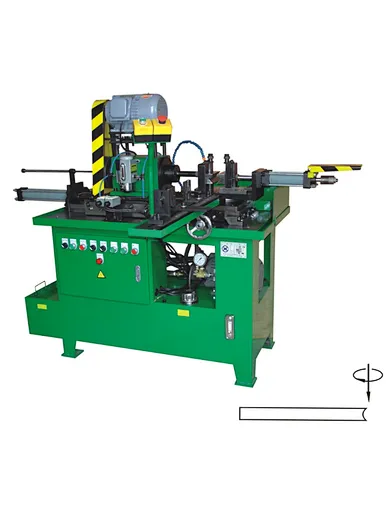

Single Head bicycle milling machine for bicycle tube | Model：CH-10-05A | |||||||||
Description： | ||||||||||
1. Single Head bicycle milling machine is a special equipment for milling bicycle tube ends and suitable for a varous of cross section tube and bending tube | ||||||||||
2. Equipment simple adjustment, fast change mold, high efficiency, stable performance. | ||||||||||
3. It adopt hydraulic cylinder to promote milling tool to forward and backward. Traval switch control the punch stroke. | ||||||||||
4. Simple size of cutter and mould which can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | milling tube ends | |||||||||
Application | Round tube and other shape tube | |||||||||
Processing diameter | Φ25.4~Φ45 and flat tube | |||||||||
Processing length | 150~850mm | |||||||||
Milling angle | 30°~90° | |||||||||
Capacity | 300 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 3 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Switch | |||||||||
Hydraulic working pressure | 3.5~5 MPa | |||||||||
Max.system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1850×800×1400 | |||||||||
Weight | 600 KG | |||||||||
Products Description
Product Code | CH-10-05A Single Head bicycle milling machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
