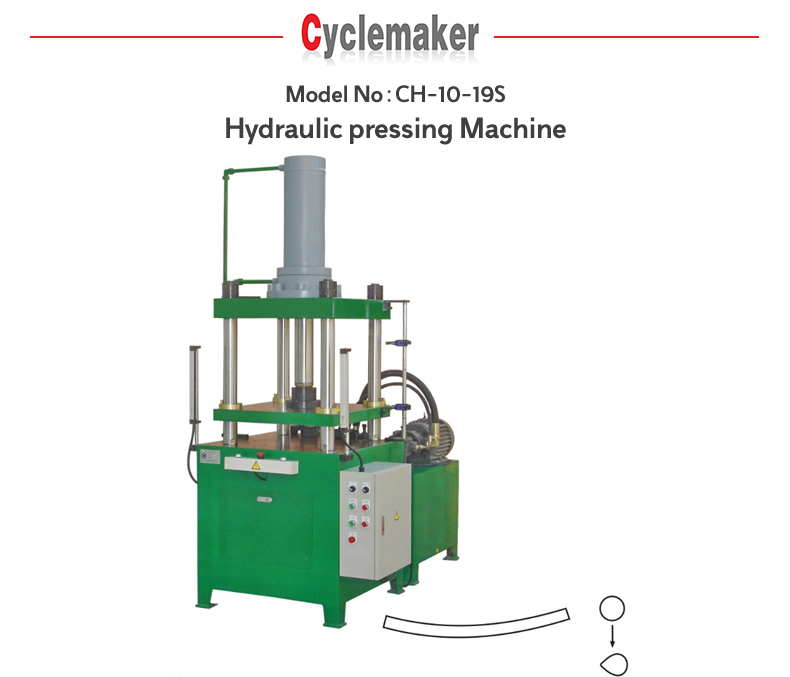

Hydraulic pressing Machine (50T)
CH-10-19S
1 set
Shenzhen Sea Port of China
Quantity
- bicycle hydraulic pressing machine for bicycle tube is a universal equipment which is processing tubes and plates to form different shapes by pressing, it's suitable for different processing situation.
- Place of Origin:China
- Function:Pressure working
- Application:different materials and shapes
- Hydraulic cylinder specification:dia meter 180*400
- Cavity height range:100~500 mm
- Plate processing range:Length ≤700*480 mm
- Tube processing range:Length ≤700 mm
- Start mode:Double switch
- Control method:PLC
- Hydraulic working pressure:14 MPa
- Max. system pressure:20 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
bicycle hydraulic pressing machine for bicycle tube (50T) | Model：CH-10-19S | |||||||||
Description： | ||||||||||
1、bicycle hydraulic pressing machine for bicycle tube is a universal equipment which is processing tubes and plates to form different shapes by pressing, it's suitable for different processing situation. | ||||||||||
2、Easy adjustment, fast mould exchange, high efficiency and stable performance. | ||||||||||
3、It adopt hydraulic cylinder push the driving mold to rise and down, the journey switch controls the stroke; | ||||||||||
4、Simple mold size can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Pressure working | |||||||||
Application | different materials and shapes for bicycle tube | |||||||||
Hydraulic cylinder specification | Φ180×400 | |||||||||
Cavity height range | 100~500 mm | |||||||||
Plate processing range | Length ≤700×480 mm | |||||||||
Tube processing range | Length ≤700 mm | |||||||||
Capacity | 500-700PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 5.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Double switch | |||||||||
Hydraulic working pressure | 14 MPa | |||||||||
Max. system pressure | 20 MPa | |||||||||
Color | Green | |||||||||
Size | 2200×900×2500 mm | |||||||||
Weight | 1700 KG | |||||||||
Products Description
Product Code | CH-10-19S bicycle hydraulic pressing machine (50T) |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/ Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment., Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
