Model No.：CH-30-22

Description：

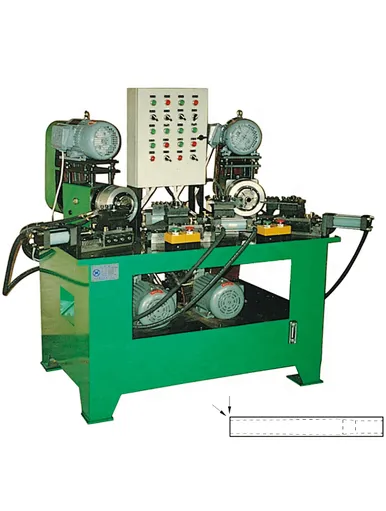

1. bicycle cutting and chamfering machine of bicycle front fork is used for cutting and chamfering round tube, it's suitable for processing front fork stem.

2. It is efficient, stable and easy for adjusting and
changing molds.

3. Adopting hydraulic collet clamp workpiece and hydraulic cylinder drives cutting tool forward/backward, position switch controls
the processing stroke; Double system design can work simultaneously or single; Rear positioning mechanism could keep the precision
of length;

4. Mold can be customized.

Function

Cutting&Chamfering

Application

Stem/round tube

Processing dia.

Φ25.4~Φ28.6 mm

Processing length

150~500 mm

Capacity

400~600 PCS/HR

Operation mode

Semi-auto

Power

6 KW

Voltage

3P 380V 50Hz

Control method

PLC

Start method

Press button

Hydraulic system pressure

4 MPa

Max.system pressure

7 MPa

Color

Green

Size

1700×1200×1600 mm

Weight

1100 KG

Product Code

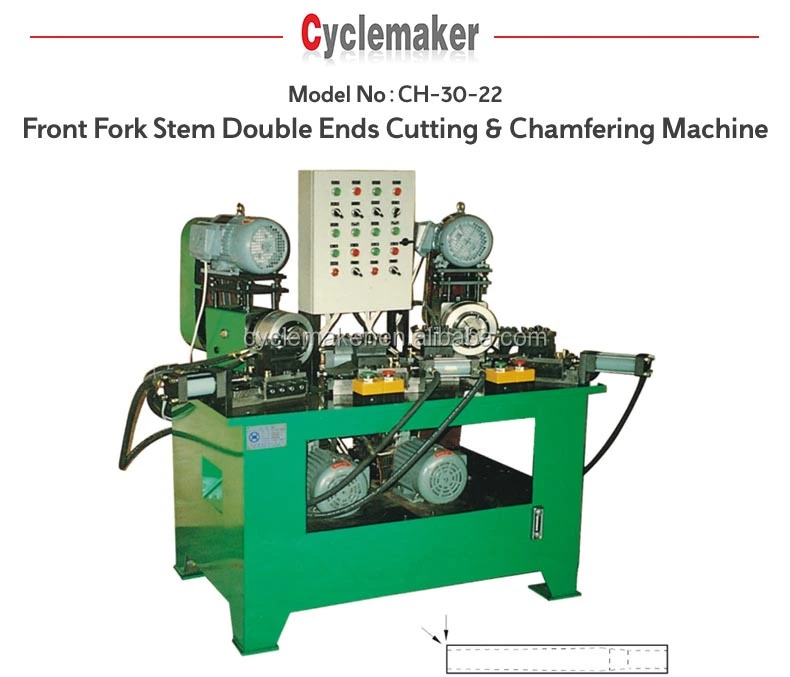

CH-30-22 Front Fork Stem Double Ends Cutting & Chamfering Machine

Place of Origin

Shenzhen,China

Brand Name

New Canghai

Certification

ISO9001,ISO14001,CE

MOQ

1 SET

Supply Ability

100SETS/Month

Packaging

Protective film/Pollywood Case/Container

Shipping Port

Shenzhen Sea Port of China

Trade Terms

FOB CFR CIF

Lead time

15 working days for mold.

45 working days for machine after receiving deposit

Total Employees

200

Payment term

30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight

Shipping Terms

20'GP container ,40'GP container,40'HQ container,LCL by sea
