Down Tube Triple Heads Mittering Machine
CH-10-04SX
1 set
Shenzhen Sea Port of China
Quantity
- bicycle mitering machine of bicycle tube is used for mitering double ends of down tube, and suitable for processing a various shape of tube
- Place of Origin:China
- Function:Mitering/Notching
- Application:Straight tube. bending tube. S-shape tube
- Dia. Of tube:Max. dia meter 12.7~50.8 mm
- ajustable angle:±30°
- Horizontal movable distance:±100
- Hydraulic working pressure:6 MPa
- Max. system pressure:9 MPa
- Control method:PLC
- Start mode:switch
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

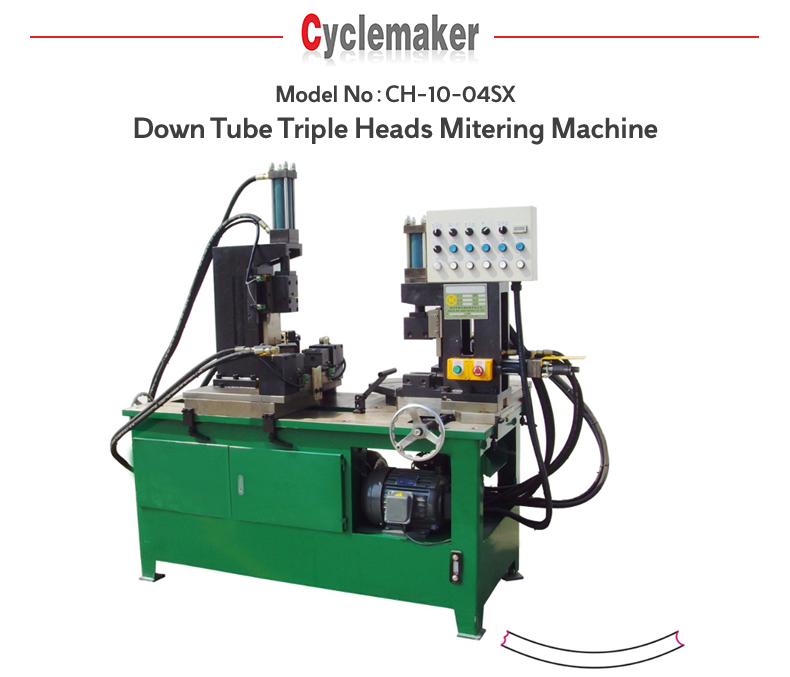

Down Tube Triple Heads Mitering Machine | Model：CH-10-04SX | |||||||||
Description： | ||||||||||
1. The special equipment is used for mitering double ends of down tube, and suitable for processing a various shape of tube; | ||||||||||
2. Equipment simple adjustment, fast change mold, high efficiency, stable performance. | ||||||||||
3. It adopt hydraulic cylinder to promote the clamp and cutter to lock tope tube and punch. Traval switch control the punch stroke. | ||||||||||
4. Simple size of cutter and mould which can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Mitering/Notching | |||||||||
Application | Straight tube. bending tube. S-shape tube | |||||||||
Dia. Of tube | Φ12.7~Φ50.8 mm | |||||||||
Length range of straight tube | 280~800 mm | |||||||||
ajustable angle of double mitering mechanism | ±30° | |||||||||
Horizontal movable distance of the bottom bracket mitering mechanism | ±100 | |||||||||
Capacity | 500~800 PCS∕HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 7.4 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Switch | |||||||||
Hydraulic working pressure | 6 MPa | |||||||||
Max. system pressure | 9 MPa | |||||||||
Size | 2100×1300×1900 mm | |||||||||
Weight | 1600 KGS | |||||||||
Products Description
Product Code | CH-10-04SX Down Tube Triple Heads Mitering Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
