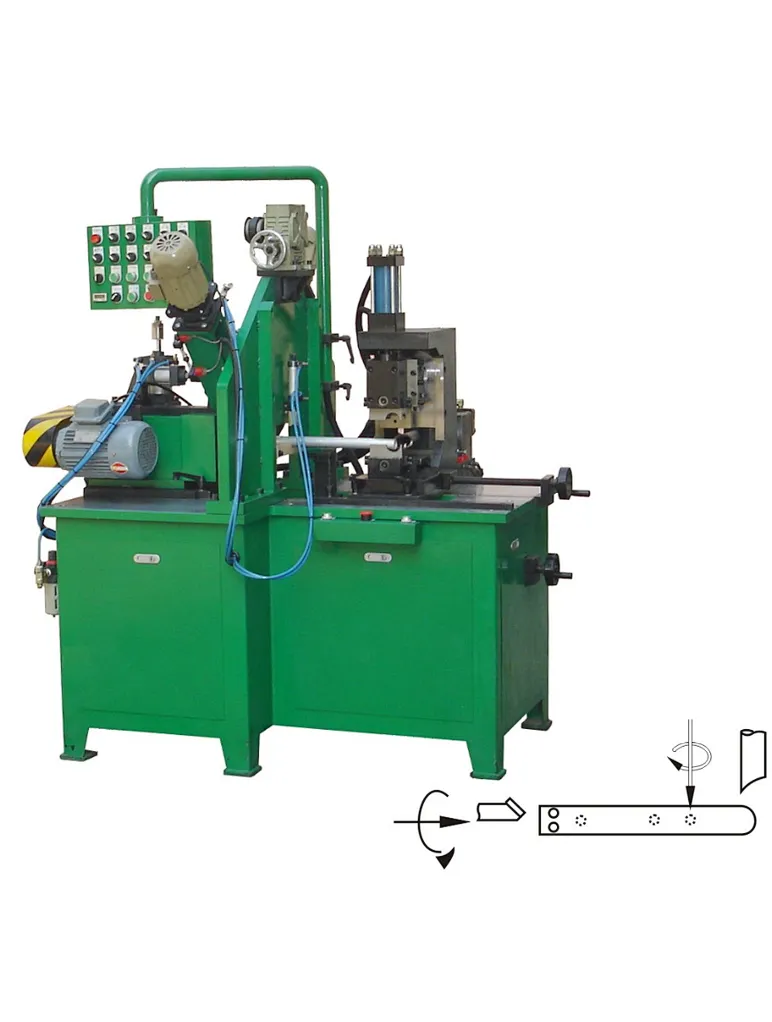

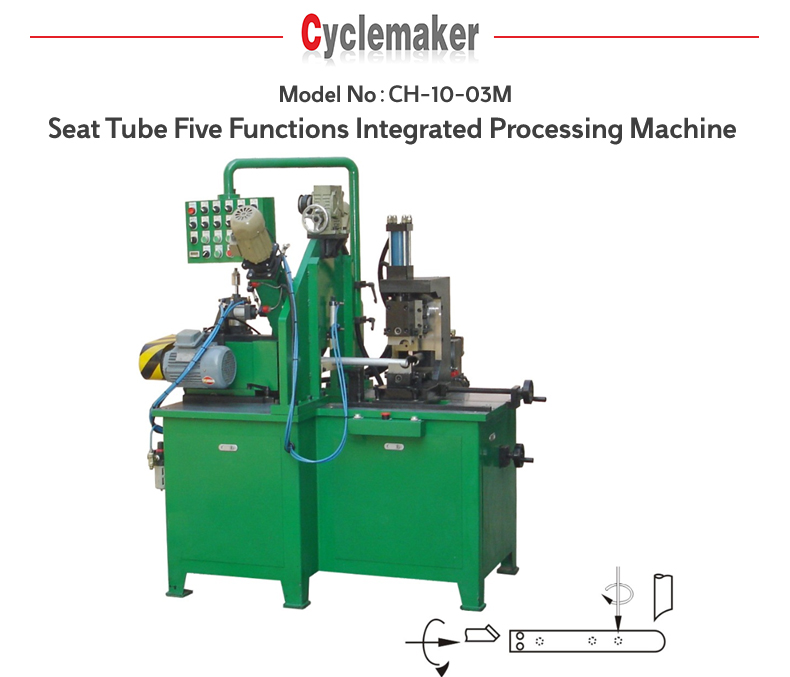

Seat Tube Five Functions Integrated Processing Machine
CH-10-03M
1 set
Shenzhen Sea Port of China
Quantity
- functions integrated machine of bicycle tube is a specialized equipment which is processing seat tube by mitering bottom side for B.B.Shell connection, Facing and chamfering top end, driling water bottle holes and drain holes
- Place of Origin:China
- Function:Mitering, drilling, chamfering
- Application:Alloy tubes
- Tube Dia.:Max. dia meter 25.4~38.1 mm
- Dia. Of drilling hole:dia meter 3~13 mm
- Tube length:400~900
- Cross angle of 2 tubes of seat stay:60°~160°
- Hydraulic working pressure:6 MPa
- Max. system pressure:9 MPa
- Control method:Relay
- Start mode:Foot switch
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
Seat Tube Five Functions Integrated Processing Machine (Chamfering and facing, Mitering and Water bottle holes & drain holes drilling) | Model：CH-10-03M | |||||||||
Description： | ||||||||||
1. It's a specialized equipment which is processing seat tube by mitering bottom side for B.B.Shell connection, Facing and chamfering top end, driling water bottle holes and drain holes | ||||||||||
2. Equipment simple adjustment, fast change mold, high efficiency, stable performance. | ||||||||||
3. It adopt hydraulic cylinder to promote the clamp and cutter to lock tope tube and punch. Traval switch control the punch stroke. | ||||||||||
4. Simple size of cutter and mould which can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Mitering, drilling, chamfering | |||||||||
Application | Alloy tubes | |||||||||
Tube Dia. | Φ25.4~Φ38.1 mm | |||||||||
Dia. Of drilling hole | Φ3~Φ13 mm | |||||||||
Tube length | 400~900 | |||||||||
Cross angle of 2 tubes of seat stay | 60°~160° | |||||||||
Capacity | 200~250 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 8 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Switch | |||||||||
Hydraulic working pressure | 6 MPa | |||||||||
Max. system pressure | 9 MPa | |||||||||
Pneumatic working pressure | 0.4~0.6 MPa | |||||||||
Color | Green | |||||||||
Size | 1600×1380×1750 mm | |||||||||
Weight | 1100 KG | |||||||||
