Horizontal Tube Mittering Machine
CH-10-22
1 set
Shenzhen Sea Port of China
Quantity
- bicycle tube mitering machine is a special equipment for mitering(Notching) arc end of tube, which is suitable for diferent coss section tubes and bending bicycle tube.
- Place of Origin:China
- Function:Mitering the end of tube
- Application:round or shaped tube
- Dia. Of tube:dia meter 60 mm
- Wall thickness of tube:0.8~2.0 mm
- Mitering angle:no-limited
- Tube length:150~900 mm
- Control method:Relay
- Start mode:Pedal switch
- Hydraulic working pressure:6~8 MPa
- Max. system pressure:11 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

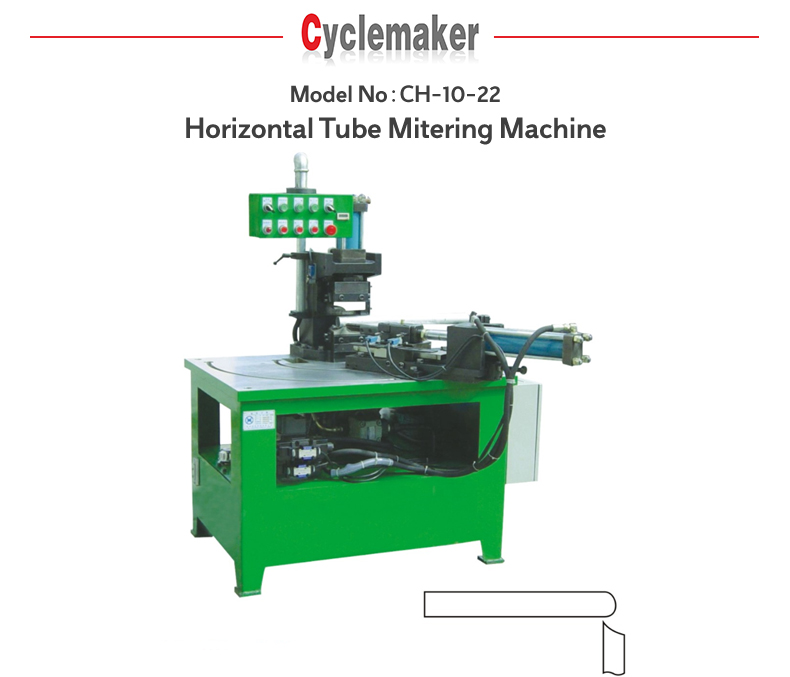

Horizontal bicycle tube mitering machine | Model：CH-10-22 | |||||||||
Description： | ||||||||||
1. bicycle tube mitering machine is a special equipment for mitering(Notching) arc end of tube, which is suitable for diferent coss section tubes and bending tubes; | ||||||||||
2. Easy adjustment, Fast exchange mold, high effeciency, stable performance. | ||||||||||
3. It adopts hydraulic cylinder to drive punching tool to forward and backward, Sensor switch controls the stroke. | ||||||||||
4. Punching tool and mold are simple , Customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Mitering the end of tube | |||||||||
Application | round or shaped tube | |||||||||
Dia. Of tube | Max. Φ60 mm | |||||||||
Wall thickness of tube | 0.8~2.0 mm | |||||||||
Tube length | 150~900 mm | |||||||||
Mitering angle | no-limited | |||||||||
Capacity | 350~500 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 5.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Pedal switch | |||||||||
Hydraulic working pressure | 6~8 MPa | |||||||||
Max. system pressure | 11 MPa | |||||||||
Color | Gray | |||||||||
Size | 1200×1050×1850 mm | |||||||||
Weight | 1100 KGS | |||||||||
Products Description
Product Code | CH-10-22 Horizontal Tube Mitering Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
