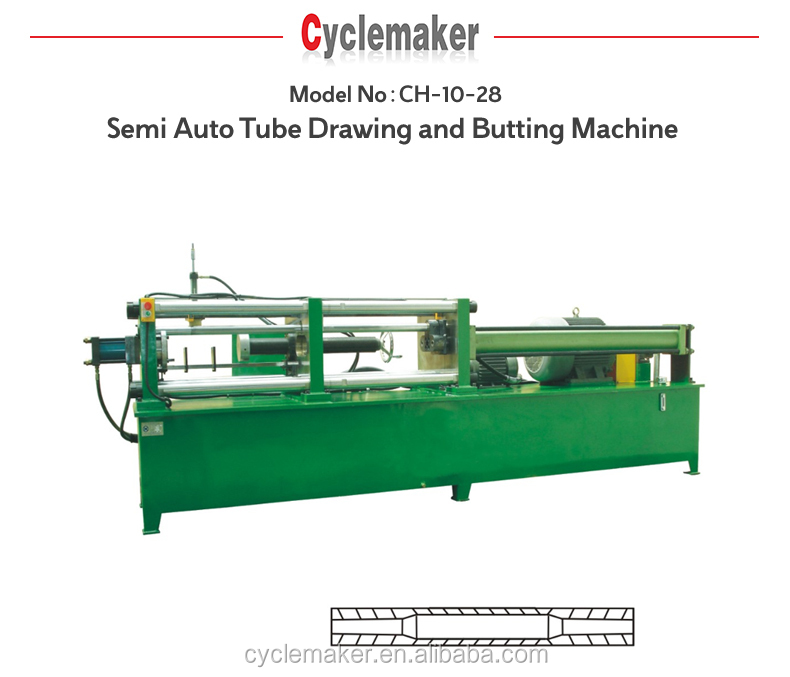

Semi Auto Tube Drawing and Butting Machine (Double tubes)
CH-10-28
1 set
Shenzhen Sea Port of China
Quantity
- bicycle copper tube drawing machine of bicycle tube is a special equipment for drawing thick walled tube to thinner and longer tube. It's suitable for handlebar and frame tube processing.
- Place of Origin:China
- Function:Drawing thick walled tube to thinner and longer
- Application:Round tubes
- Tube range:dia meter 25.4~60 mm
- Length range:Max.800 mm
- Control method:Relay
- Start mode:Pressing button
- Hydraulic working pressure:10 MPa
- Max. system pressure:14 MPa
- Air working pressure:0.4~0.6 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

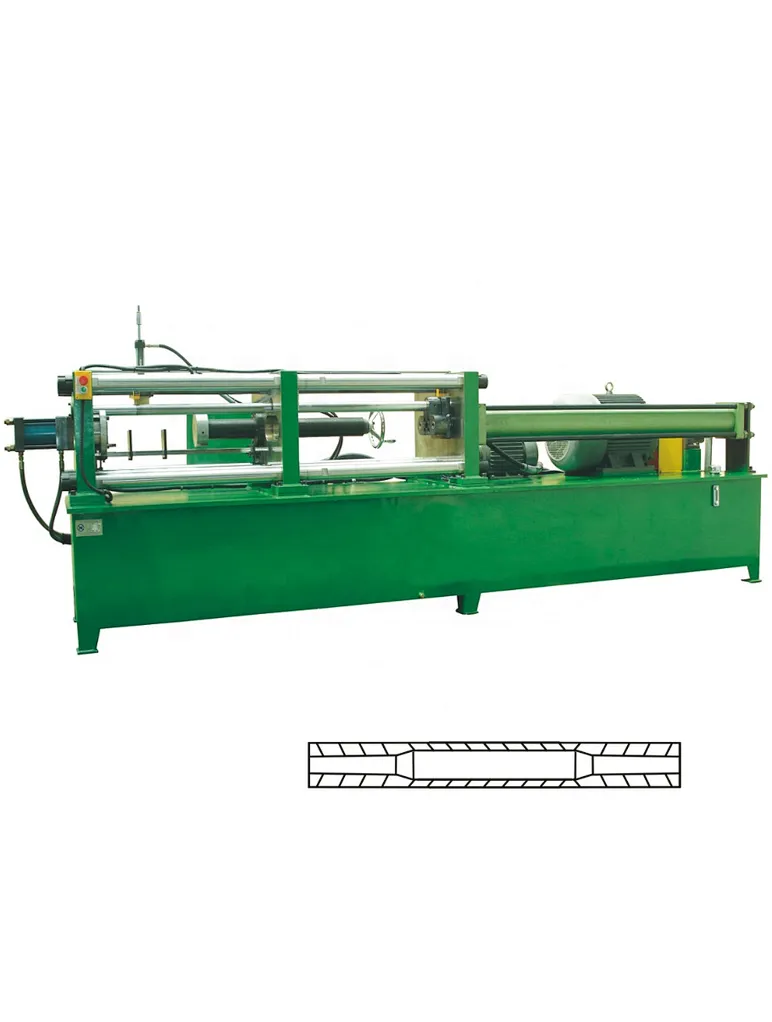

bicycle copper tube drawing machine of bicycle tube (Double tubes) | Model No.：CH-10-28 | |||||||||
Description： | ||||||||||
1. bicycle copper tube drawing machine of bicycle tube is a special equipment for drawing thick walled tube to thinner and longer tube. It's suitable for handlebar and frame tube processing. | ||||||||||
2. Easy to adjust equipment, tool change fast, high efficiency, stable performance. | ||||||||||
3. It adopt hydrulic cylinder to promote the shaft to forward and backward, the air cylinder promote to supporting mechanism up and down. Position switch controlled the cylinder stroke | ||||||||||
4. Shaft and mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Drawing thick walled tube to thinner and longer | |||||||||
Application | Round tubes | |||||||||
Tube range | Φ25.4~Φ60 mm | |||||||||
Length range | Max.800 mm | |||||||||
Capacity | 120~150 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 30 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control Method | PLC | |||||||||
Start Method | Pressing button | |||||||||
Hydraulic working pressure | 10 MPa | |||||||||
Max system pressure | 15 MPa | |||||||||
Air working pressure | 0.4~0.6 MPa | |||||||||
Color | Green | |||||||||
Size | 6000×750×1400 mm | |||||||||
Weight | 4300 KG | |||||||||
Products Description
Product Code | CH-10-28 Semi Auto Tube Drawing and Butting Machine (Double tubes) |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
