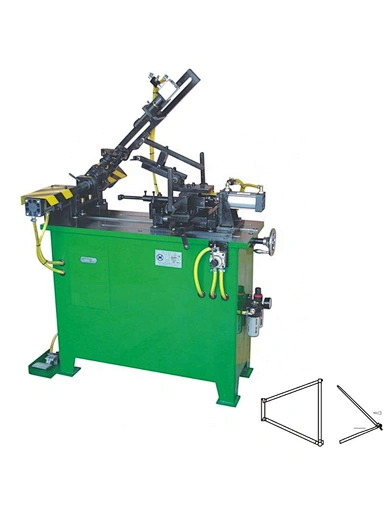

Front & Rear Triangle Assembling Machine
CH-20-09
1 set
Shenzhen Sea Port of China
Quantity
- bicycle triangle assembling machine of bicycle frame is used for assembling Rear triangle (Seatstay&chainstay) onto front triangle and fixing bridge tubes onto Seatstay&chainstay.
- Place of Origin:China
- Function:Assembly Front & Rear Triangle of Bicycle frame
- Application:Steel or Alloy Bicycle frames
- Applicable Size:16"~28"Frames
- Applicable Length:60~100 mm ( B.B.Shell )
- Applicable Length2:200~740 mm (Seattube)
- Applicable Length3:300~620 mm (Chainstay)
- Applicable Distance:112~155 mm (Dropout Distance)
- Operation mode:Manual
- Start mode:Switch or Pedal switch
- Compressed air pressure for working:0.4~0.6 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

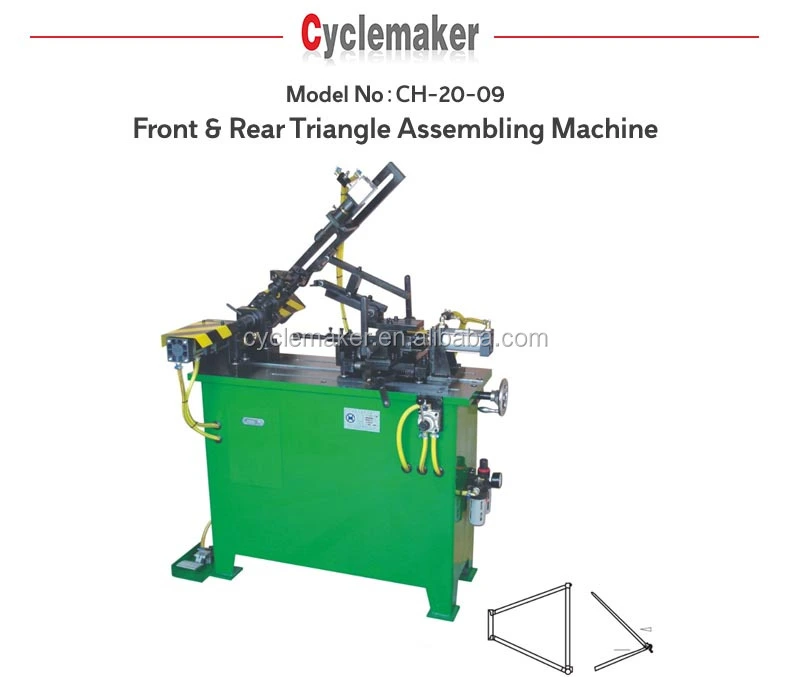

Front & Rear Triangle Assembling Machine | Model No.：CH-20-09 | |||||||||
Description： | ||||||||||
1. This machine is used for assembling Rear triangle (Seatstay&chainstay) onto front triangle and fixing bridge tubes onto Seatstay&chainstay. | ||||||||||
2. This machine can help to reduce the rate of defect on runout of rear wheel that is caused by askew dropouts. | ||||||||||
3. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Assembly Front & Rear Triangle of Bicycle frame | |||||||||
Application | Steel or Alloy Bicycle frames | |||||||||
Applicable Size | 16"~28"Frames | |||||||||
Applicable Length | 60~100 mm ( B.B.Shell ) | |||||||||
Applicable Length | 200~740 mm (Seattube) | |||||||||
Applicable Length | 300~620 mm (Chainstay) | |||||||||
Applicable Distance | 112~155 mm (Dropout Distance) | |||||||||
Capacity | 60~90 PCS/HR | |||||||||
Operation mode | Manual | |||||||||
Start mode | Switch or Pedal switch | |||||||||
Compressed air pressure for working | 0.4~0.6 MPa | |||||||||
Color | Gray | |||||||||
Size | 800×1250×1650 mm | |||||||||
Weight | 250 KG | |||||||||
Products Description
Product Code | CH-20-09 Front & Rear Triangle Assembling Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
