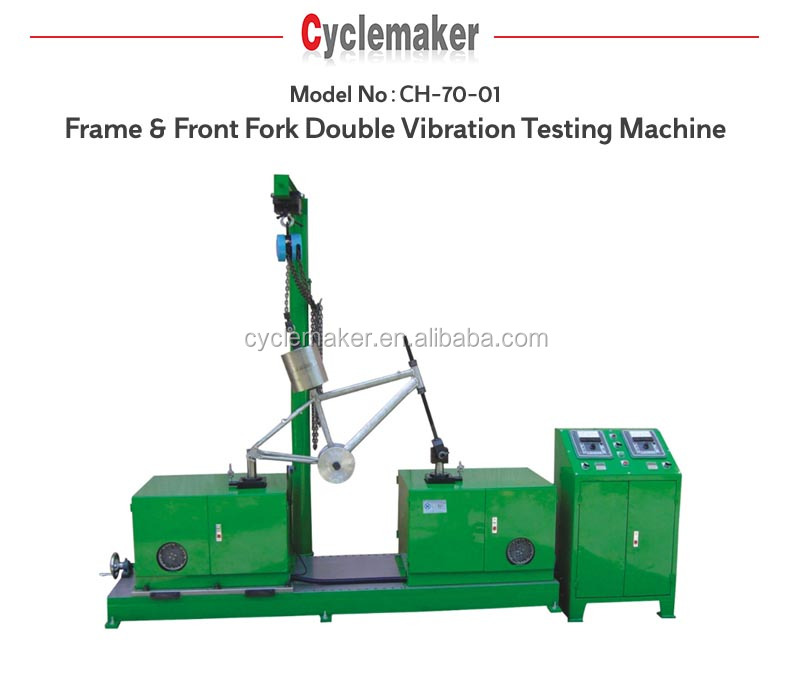

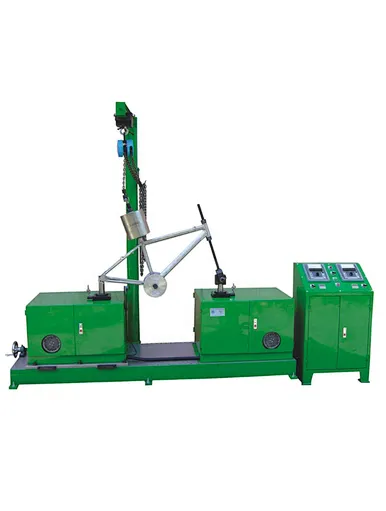

Frame & Front Fork Double Vibration Testing Machine
CH-70-01
1 set
Shenzhen Sea Port of China
Quantity
- bicycle testing machine is used for simulation vibration testing the frame and front fork in the load state, which is suitable for fatigue strength testing of bicycle or elec-bicycle frame and front fork.
- Place of Origin:China
- Function:Vibration testing
- Application Products:Frame of bicycle/elec-bicycle
- Distance between rear&front wheel:620~1460 mm
- Vibration frequency:Max. 10 Hz
- Amplitude of vibration:5~30 mm
- Control Mode:Relay
- Start mode:Press button
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
| frame and front fork testing double vibration machine of bicycle testing machine | Model No.：CH-70-01 | |||||||||
Description： | ||||||||||
1. frame and front fork testing double vibration machine of bicycle testing machine is used for simulation vibration testing the frame and front fork in the load state, which is suitable for fatigue strength testing of bicycle or elec-bicycle frame and front fork. | ||||||||||
2.frame and front fork testing double vibration machine of bicycle machine for bicycle testing is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting double vibration mechanism which can work simultaneously or single; Counting system controls the vibration times. The frequency and amplitude of vibration and wheel distance can be adjusted. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Vibration testing | |||||||||
Application | Frame of bicycle/elec-bicycle | |||||||||
Distance between rear&front wheel | 620~1460 mm | |||||||||
Vibration frequency | Max. 10 Hz | |||||||||
Amplitude of vibration | 5~30 mm | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 3 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Press button | |||||||||
Color | Green | |||||||||
Size | 2700×1100×2400 mm | |||||||||
Weight | 600KG | |||||||||
Product Code | CH-70-01 Frame & Front Fork Double Vibration Testing Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
