Front Fork Stem Slot Milling Machine
CH-30-06A
1 set
Shenzhen Sea Port of China
Quantity
- bicycle slot milling machine is used for bicyle front fork stem, it's suitable for slot processing of front fork stem stopper ring.
- Place of Origin:China
- Function:Lathing front fork collar
- Application:Front fork stem
- Capacity:600~700 PCS/HR
- Operation mode:Semi-auto
- Power:3.7 KW
- Voltage:3P 380V 50Hz
- Start method:Pedal
- Control method:Relay
- Weight:450 KG
- Max.system pressure:7 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

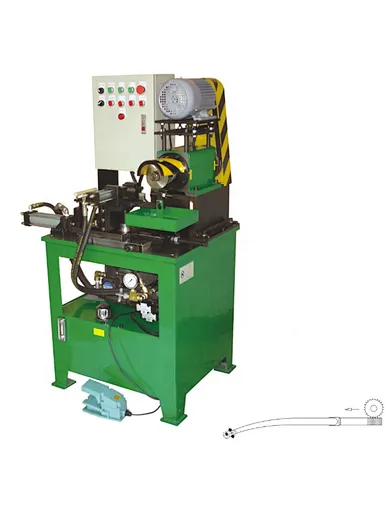

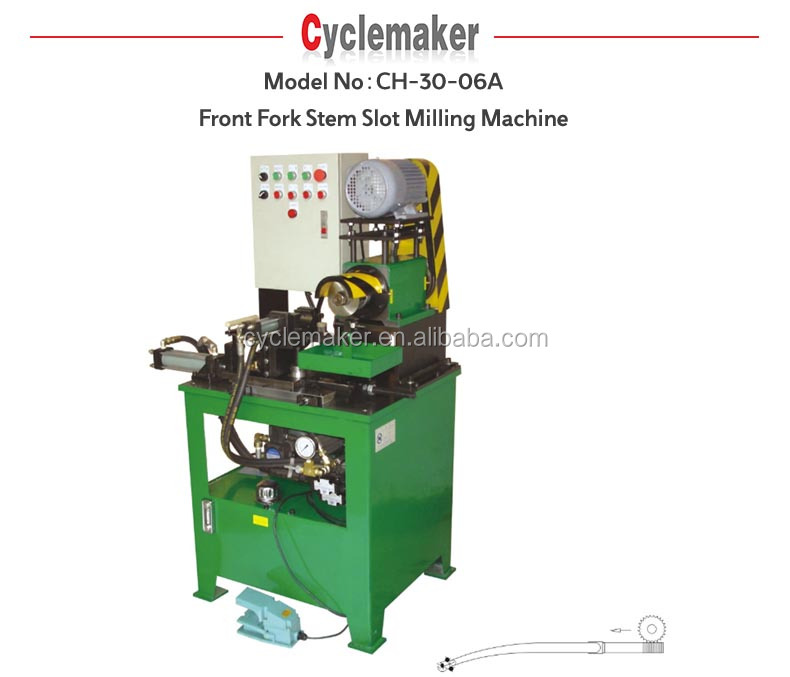

bicycle front fork stem slot milling machine | Model No.：CH-30-06A | |||||||||
Description： | ||||||||||
1. bicycle front fork stem slot milling machine is used for front fork stem, it's suitable for slot processing of front fork stem stopper ring. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting hydraulic cylinder drives workpiece forward/backward and clamp lock/unlock; Sensor switch controls processing stroke. | ||||||||||
4. Mode can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Milling slot | |||||||||
Application | Front fork stem | |||||||||
Dia. Of stem | Φ25.4~Φ28.6 mm | |||||||||
Size of milling blade | Φ110×Φ25.4×3 | |||||||||
Capacity | 600~700 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 3 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Startt method | Pedal | |||||||||
Hydraulic working pressure | 3 MPa | |||||||||
Max.system pressure | 7 MPa | |||||||||
Color | Gray | |||||||||
Size | 850×1000×1700 mm | |||||||||
Weight | 400 KG | |||||||||
Products Description
Product Code | CH-30-06A Front Fork Stem Slot Milling Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
