Seat Stay Mittering Machine (Milling Type)
CH-20-11A
1 set
Shenzhen Sea Port of China
Quantity
- bicycle seat stay mittering machine of bicycle frame is used for milling the arc of seat stay to make sure to connect smoothly with seat tube. It's suitable for steel and alloy frame.
- Place of Origin:China
- Function:Milling arc
- Application:Seat stay
- Processing dia.:DIA 25.4~38.1 mm
- Processing length:16"~28"frame(Max.700)
- Angle of milling:0°~90°
- Control method:PLC
- Applicable Distance:112~155 mm (Dropout Distance)
- Start method:Pedal switch
- Hydraulic working pressure:2.5~3.5 MPa
- Max. system pressure:7 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

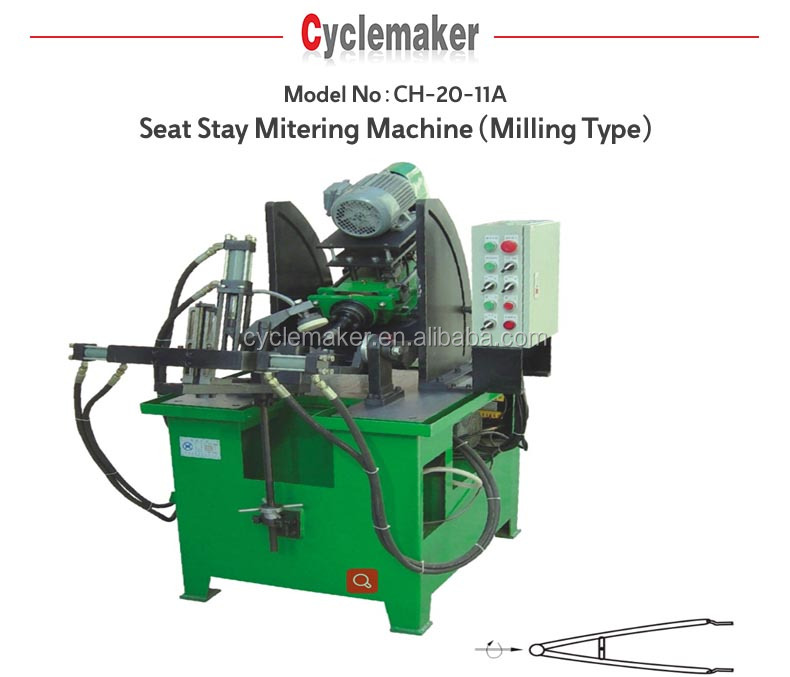

Seat Stay Mitering Machine (Milling Type) | Model No.：CH-20-11A | |||||||||
Description： | ||||||||||
1. This machine is used for milling the arc of seat stay to make sure to connect smoothly with seat tube. It's suitable for steel and alloy frame. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. It adopt special driver to controls the milling tool, Position switch controls the stroke; Hydraulic cylinder clamp the workpiece, Cycle-cooling system. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Milling arc | |||||||||
Application | Seat stay | |||||||||
Processing dia. | Φ25.4~Φ38.1 mm | |||||||||
Processing length | 16"~28"frame(Max.700) | |||||||||
Angle of milling | 0°~90° | |||||||||
Capacity | 400 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 3.15 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Pedal switch | |||||||||
Hydraulic working pressure | 2.5~3.5 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1650×900×1500 mm | |||||||||
Weight | 600 KG | |||||||||
Products Description
Product Code | CH-20-11A Seat Stay Mittering Machine (Milling Type) |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
