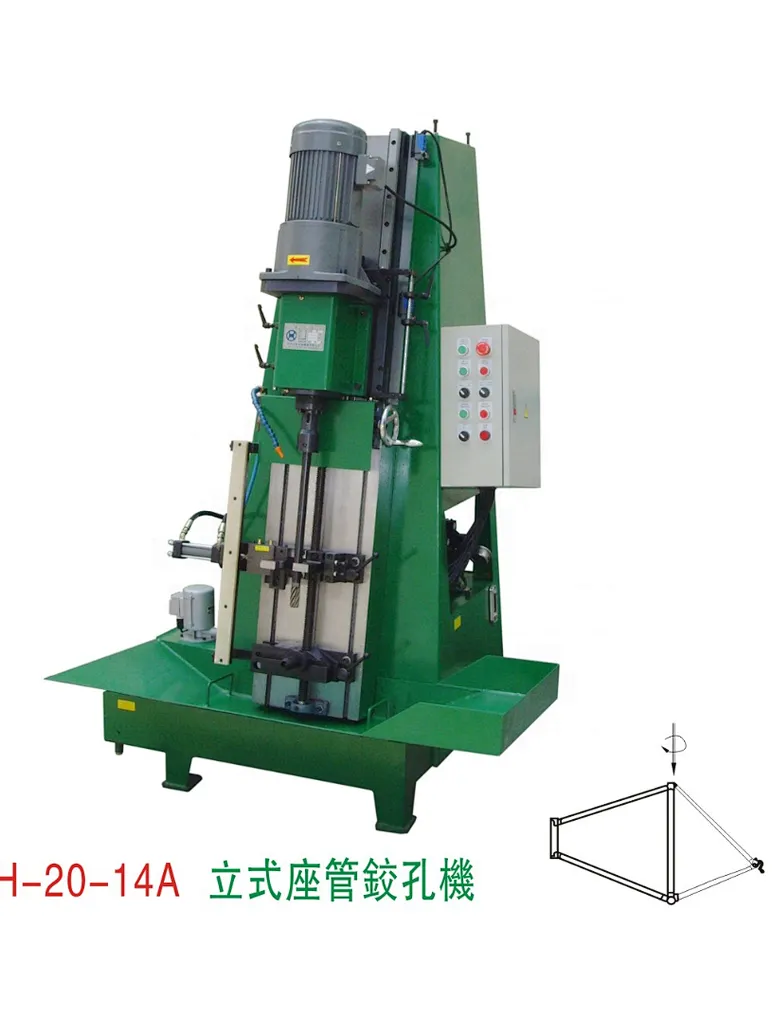

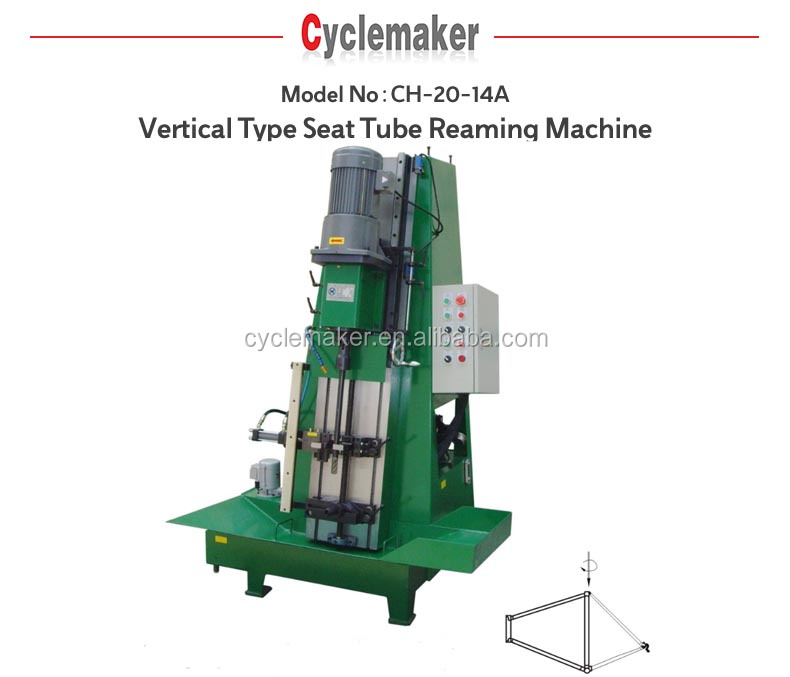

Vertical Type Seat Tube Reaming Machine
CH-20-14A
1 set
Shenzhen Sea Port of China
Quantity
- bicycle reaming machine of bicycle frame is used for reamming seat tube after welding processing of frame, it's suitable for processing many size of tubes.
- Place of Origin:China
- Function:Reaming holes
- Application:Seat tube of frame
- Processing range:Seat tube Length 250~650 mm
- Capacity:150~250 PCS/HR
- Operation mode:Semi-auto
- Power:5.4KW
- Voltage:3P 380V 50Hz
- Start method:Pedal switch
- Control method:Relay
- Max. system pressure:7 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
Vertical Type Seat Tube bicycle reaming machine of bicycle frame | Model No.：CH-20-14A | |||||||||
Description： | ||||||||||
1. bicycle reaming machine of bicycle frame is used for reamming seat tube after welding processing of frame, it's suitable for processing many size of tubes. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Reaming holes | |||||||||
Application | Seat tube of frame | |||||||||
Processing range | Seat tube length 250~650 mm | |||||||||
Max. reaming depth 500 mm | ||||||||||
Capacity | 150~250 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 5.4 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Pedal switch | |||||||||
Hydraulic working pressure | 4 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Color | Gray | |||||||||
Size | 1200×1000×2250 mm | |||||||||
Weight | 880 KGS | |||||||||
Products Description
Product Code | CH-20-14A Vertical Type Seat Tube Reaming Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
