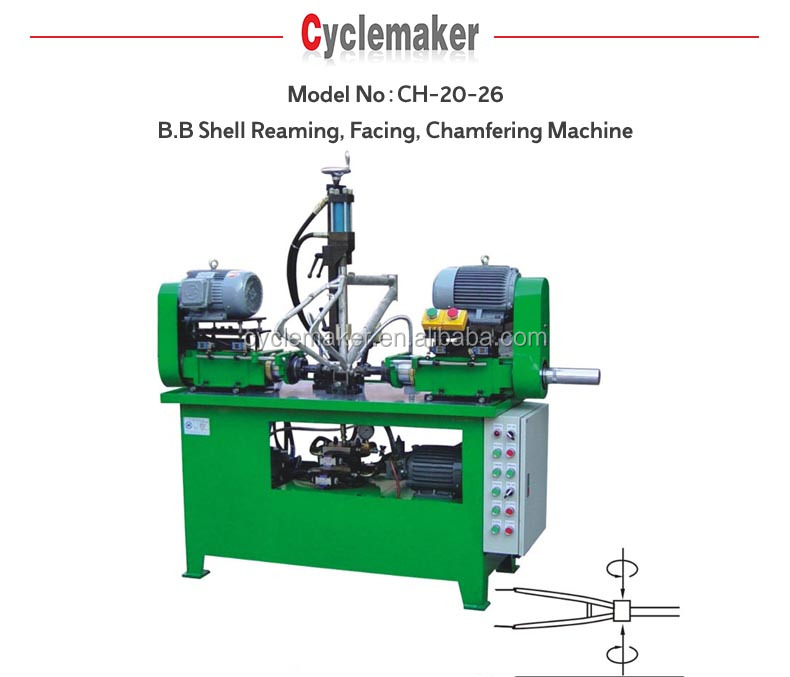

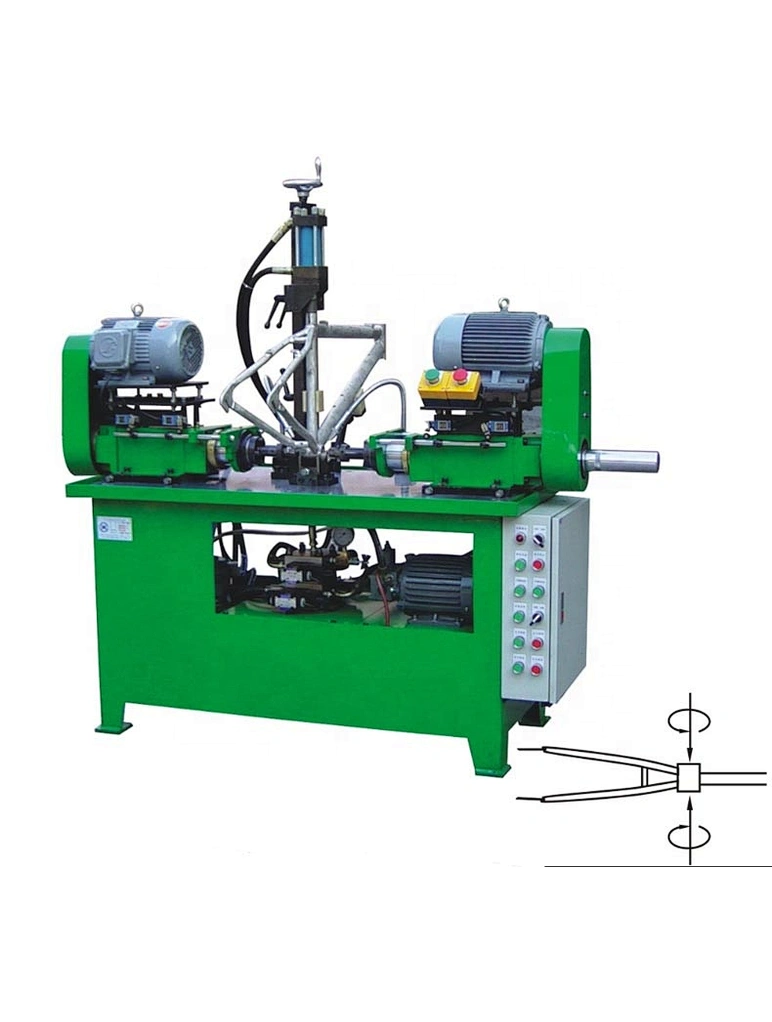

B.B Shell Reaming, Facing, Chamfering Machine
CH-20-26
1 set
Shenzhen Sea Port of China
Quantity
- bicycle reaming facing chamfering machine of bicycle frame is used for processing B.B shell after welding frame by reaming, facing and chamfering B.B shell.
- Place of Origin:China
- Function:Reaming, facing, chamfering
- Application:Frame
- Processing dia.:30~60 mm
- Processing length:50~350mm
- Capacity:120 PCS/HR
- Operation mode:Semi-automatic
- Power:5.5KW
- Start method:Press button
- Voltage:3P 380V 50Hz
- Control method:PLC
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
B.B Shell Reaming, Facing, Chamfering Machine | Model No.：CH-20-26 | |||||||||
Description： | ||||||||||
1. This machine is used for processing B.B shell after welding frame by reaming, facing and chamfering B.B shell. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Mode can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Reaming, facing and chamfering B.B shell | |||||||||
Application | Frame | |||||||||
Processing dia. | Φ34~Φ55 mm | |||||||||
Processing Length | 60~110 mm | |||||||||
Length range of seat tube | 150~600 mm | |||||||||
Capacity | 120~180 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Powr | 5.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Press button | |||||||||
Hydraulic working pressure | 2.5 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 2000×1000×1700 mm | |||||||||
Weight | 1000 KG | |||||||||
Products Description
Product Code | CH-20-26 B.B Shell Reaming, Facing, Chamfering Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
