Suspension Fork Inner Bush Pressing Machine
CH-30-36
1 set
Shenzhen Sea Port of China
Quantity
- bicycle pressing machine of bicycle front fork is used for pressing suspension fork inner bush, it’s suitable for many size of assembly of suspension front fork legs and inner bush
- Place of Origin:China
- Function:Assembly suspension inner bush
- Application:suspension front fork legs
- Operation Mode:Semi-automatic
- Control Mode:megnetic starter
- Start mode:pedal switch
- Hydraulic system pressure:3 Mpa
- Max,system pressure:7 Mpa
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

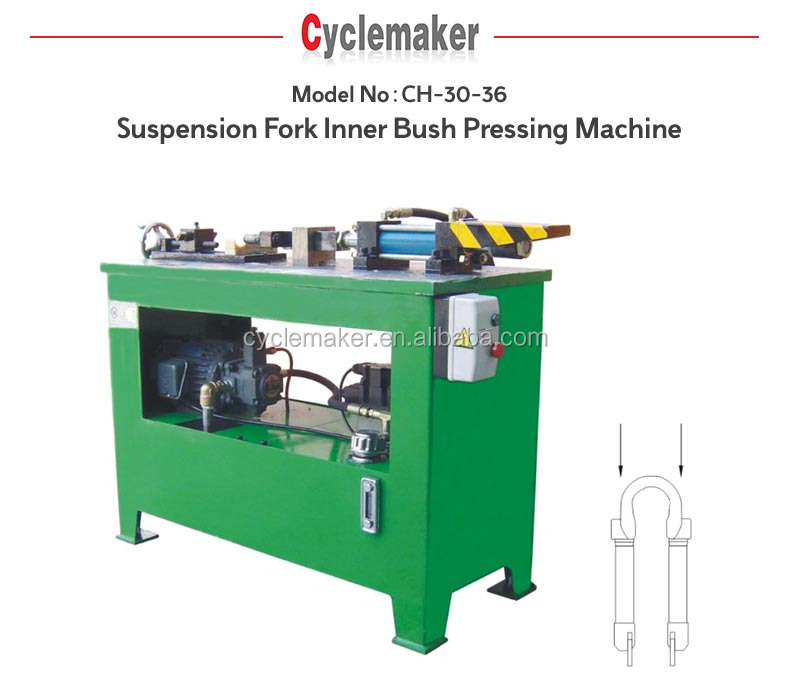

Suspension Fork Inner Bush Pressing Machine | Model No.：CH-30-36 | |||||||||
Description： | ||||||||||
1. This Machine is used for pressing suspension fork inner bush, it’s suitable for many size of assembly of suspension front fork legs and inner bush. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting hydraulic cylinder to drive the press head forward/backward, the back nut of cylinder controls the processing stroke. | ||||||||||
4. Mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Assembly suspension inner bush | |||||||||
Application | suspension front fork legs | |||||||||
Capacity | 150~200 PCS∕HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 1.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | megnetic starter | |||||||||
Start method | pedal switch | |||||||||
Hydraulic working pressure | 3 MPa | |||||||||
Max.system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1350×500×900 mm | |||||||||
Weight | 350 KG | |||||||||
Product Code | CH-30-36 Suspension Fork Inner Bush Pressing Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |

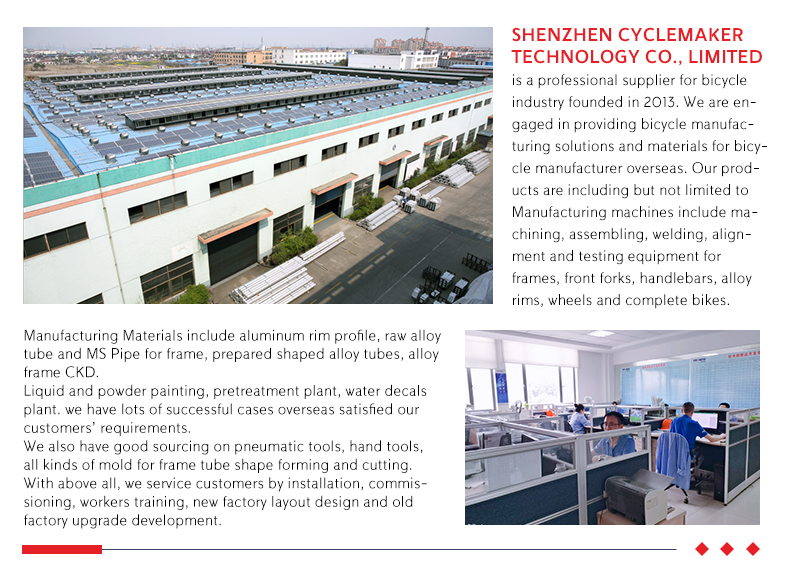

About Us
