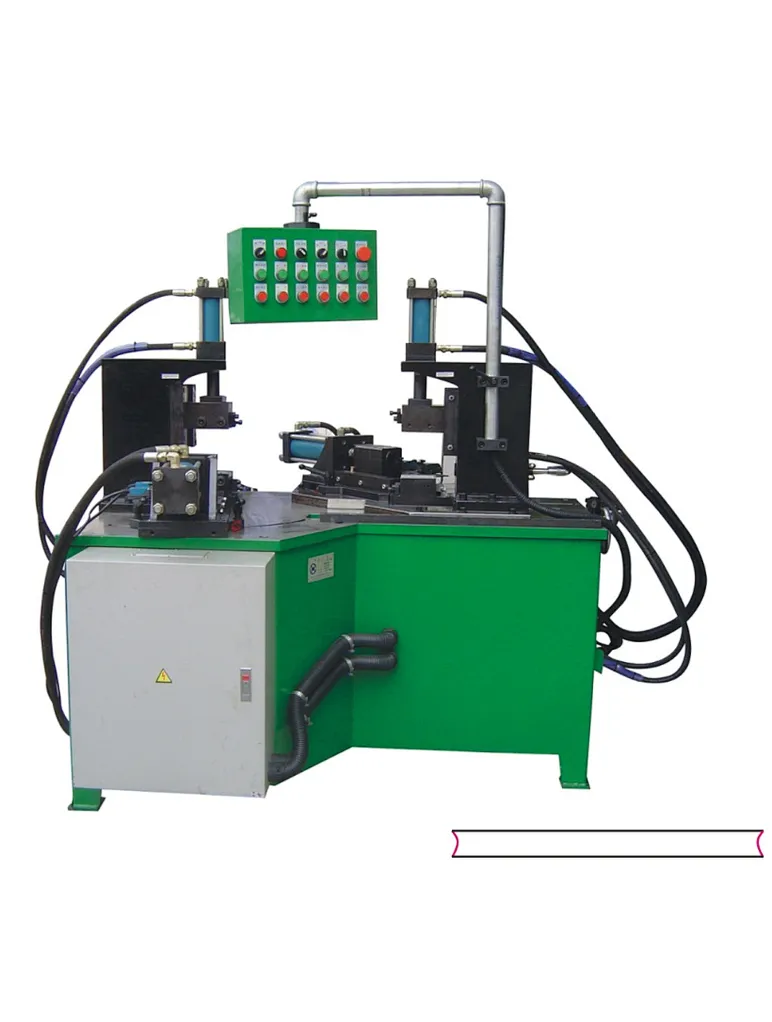

Top Tube Double Ends Mitering Machine
CH-10-04
1 set
Shenzhen Sea Port of China
Quantity
- bicycle mitering machine of bicycle frame is used for mitering double ends of top tube
- Place of Origin:China
- Function:Mitering
- Application:top tube
- Dia. Of tube:Max. dia meter 12.7~50.8 mm
- Processing length:400~800 mm
- Angle with the head tube:55°~90°
- Angle with seat tube:55°~115°
- Hydraulic working pressure:6 MPa
- Max. system pressure:9 MPa
- Control method:PLC
- Start mode:switch
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

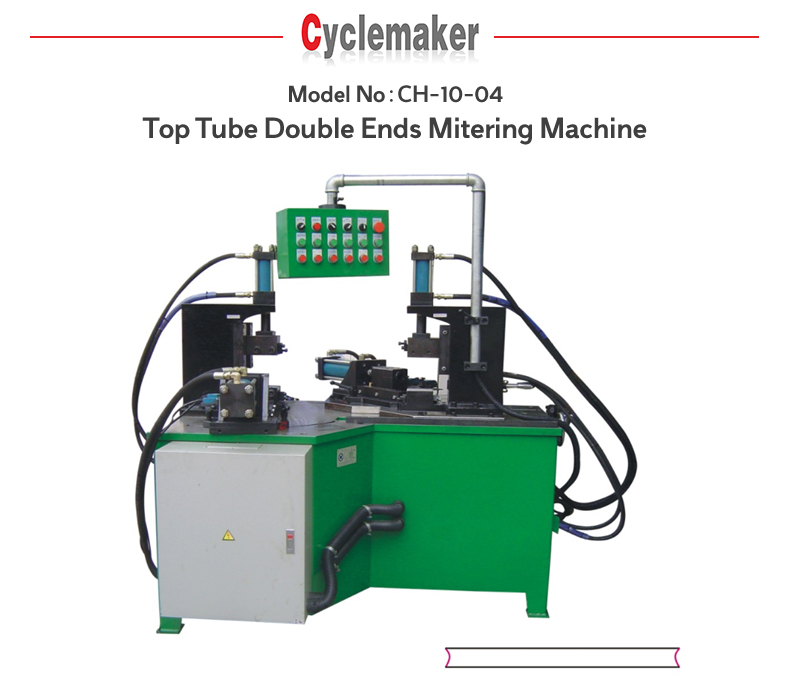

Top Tube Double Ends Mitering Machine | Model ：CH-10-04 | |||||||||
Description： | ||||||||||
1. The special equipment is used for mitering double ends of top tube, and suitable for processing a various shape of tube; | ||||||||||
2. Equipment simple adjustment, fast change mold, high efficiency, stable performance. | ||||||||||
3. It adopt hydraulic cylinder to promote the clamp and cutter to lock tope tube and punch. Traval switch control the punch stroke. | ||||||||||
4. Simple size of cutter and mould which can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Mitering | |||||||||
Application | top tube | |||||||||
Dia. Of tube | Φ12.7~Φ50.8 mm | |||||||||
Processing length | 400~800 mm | |||||||||
Angle with the head tube | 55°~90° | |||||||||
Angle with seat tube | 55°~115° | |||||||||
Capacity | 450~500 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 7.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Switch | |||||||||
Hydraulic working pressure | 6 MPa | |||||||||
Max. system pressure | 9 MPa | |||||||||
Color | Green | |||||||||
Size | 1750×1500×1650 mm | |||||||||
Weight | 1100 KG | |||||||||
Product Code | CH-10-04 Top Tube Double Ends Mitering Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
