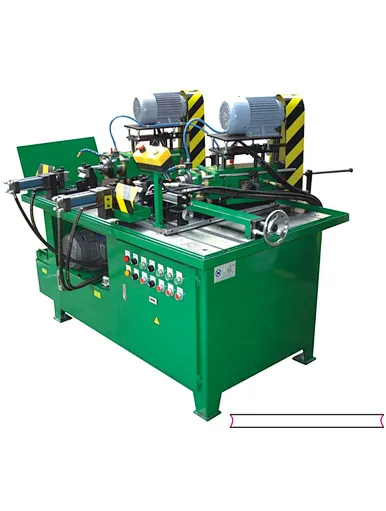

Top Tube Double Ends Milling Machine
CH-10-16
1 set
Shenzhen Sea Port of China
Quantity
- bicycle milling machine of bicycle tube is used for mitering double ends of down tube, and suitable for processing a various shape of tube
- Place of Origin:China
- Function:milling tube ends
- Application:Round tube and other shape tube
- Processing diameter:Dia meter 19~60 mm
- Processing length:350~700 mm
- Angle with seat tube:50°~90°
- Angle with head tube:55°~125°
- Hydraulic working pressure:2~2.5 MPa
- Max. system pressure:6 MPa
- Control method:PLC
- Start mode:Two Switch
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Production Introduction | ||||||||||

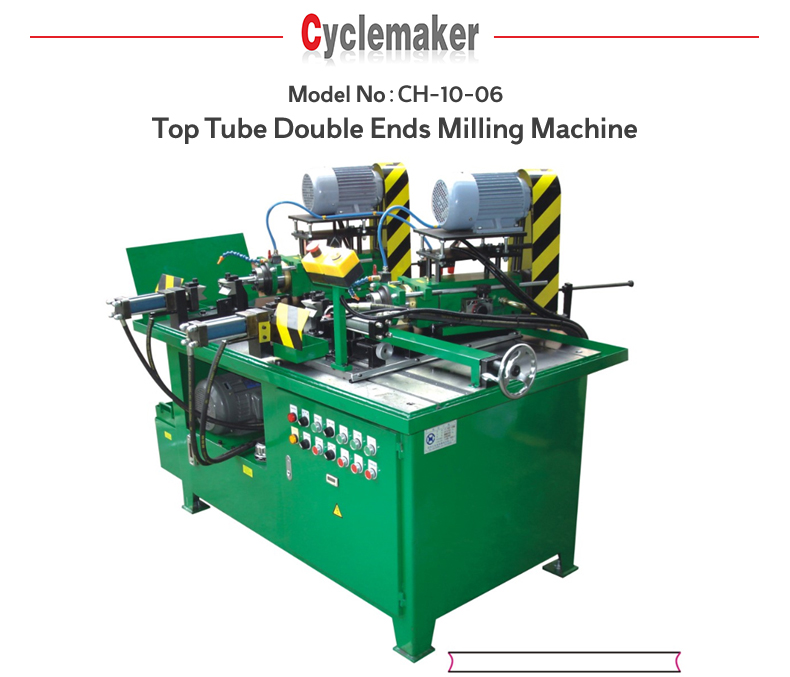

Top Tube Double Ends Milling Machine | Model：CH-10-06 | |||||||||
Description： | ||||||||||
1. The special equipment is used for mitering double ends of down tube, and suitable for processing a various shape of tube; | ||||||||||
2. Equipment simple adjustment, fast change mold, high efficiency, stable performance. | ||||||||||
3. It adopt hydraulic cylinder to promote the clamp and cutter to lock tope tube and punch. Traval switch control the punch stroke. | ||||||||||
4. Simple size of cutter and mould which can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Milling tube end | |||||||||
Application | Round tube and othe shape tube | |||||||||
Processing diameter | Φ19~Φ60 mm | |||||||||
Processing length | 350~700 mm | |||||||||
Angle with seat tube | 50°~90° | |||||||||
Angle with head tube | 55°~125° | |||||||||
Capacity | 150~250 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 5.35 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Two Switch | |||||||||
Hydraulic working pressure | 2~2.5 MPa | |||||||||
Max. system pressure | 6 MPa | |||||||||
Color | Green | |||||||||
Size | 2100×1250×1350 mm | |||||||||
Weight | 1500 KG | |||||||||
Products Description
Product Code | CH-10-06Top Tube Double Ends Milling Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
