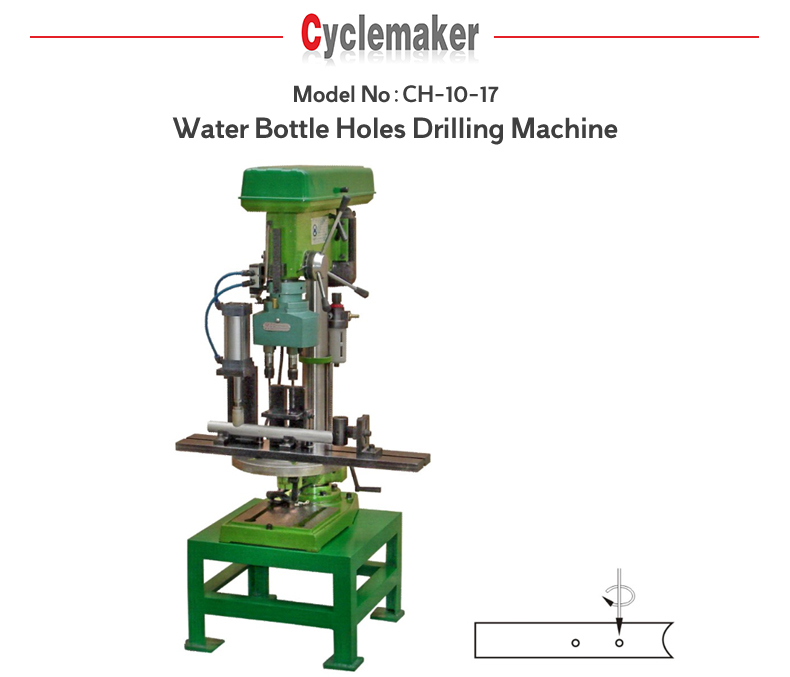

bicycle holes drilling machine of bicycle tube Machine

Model：CH-10-17

Description：

1. bicycle holes drilling machine of bicycle tube is a special equipment for drilling water bottle
holes, suitable for round tubes and elliptic tubes;

2. Equipment easy adjustment, fast mold change, high efficiency, stable performance;

3. It adopt cylinder to control the drilling head to press down and release, mechanical valve switch controls the expansion of the
cylinder.

4. Simple drilling tool and mold can be customized.

ITEMS

VALUE

Function

Drilling water bottle holes

Application

Round or shaped tube

Dia. Of round tube

Φ22~Φ63 mm

Tube length

Min. 200 mm

Capacity

300~500 PCS/HR

Operation Mode

Semi-automatic

Distance between holes

64 mm

Power

0.75 KW

Voltage

3P 380V 50Hz

Control method

Press switch

Start method

Switch

Pneumatic working pressure

0.4~0.6 MPa

Color

Green

Size

700×600×1650 mm

Weigth

100 KG

Product Code

CH-10-17 Water Bottle Holes Drilling Machine

Place of Origin

Shenzhen,China

Brand Name

New Canghai

Certification

ISO9001,ISO14001,CE

MOQ

1 SET

Supply Ability

100SETS/Month

Packaging

Protective film/Pollywood Case/Container

Shipping Port

Shenzhen Sea Port of China

Trade Terms

FOB CFR CIF

Lead time

15 working days for mold.

45 working days for machine after receiving deposit

Total Employees

200

Payment term

30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight

Shipping Terms

20'GP container ,40'GP container,40'HQ container,LCL by sea
