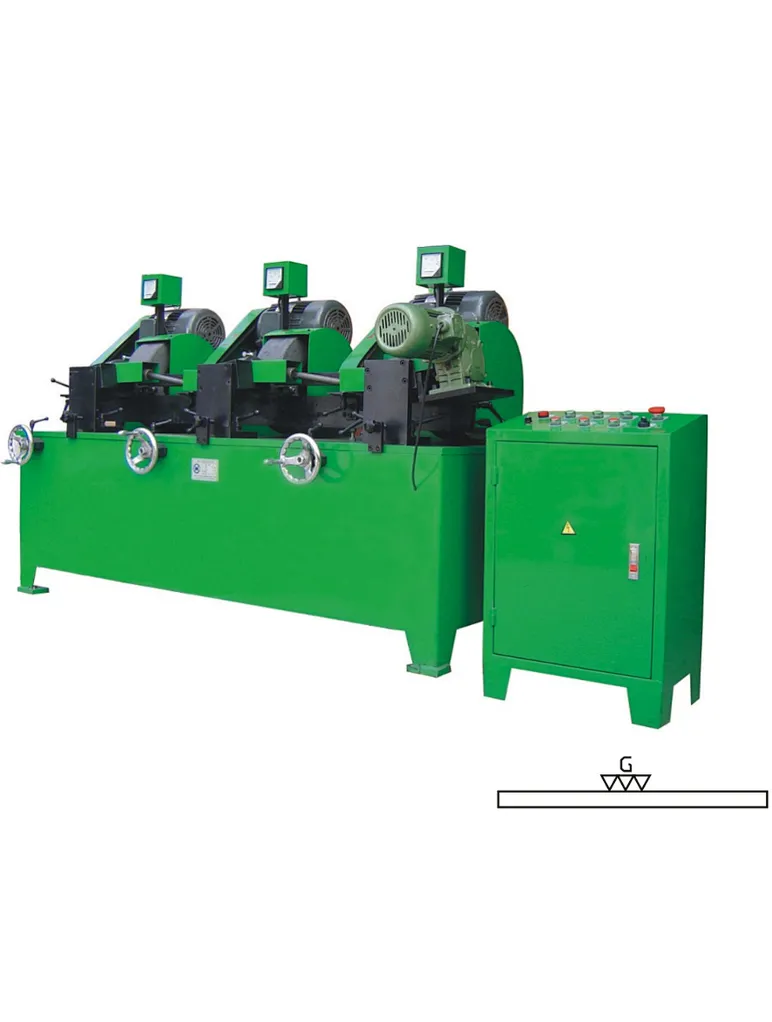

Round Tube Automatic Grinding & Polishing Machine
CH-10-20
1 set
Shenzhen Sea Port of China
Quantity
- bicycle grinding and polishing machine of bicycle tube is for grinding and polishing the cylinder-shaped outer surface; it's suitable for processing round bars and round tubes
- Place of Origin:China
- Function:Grinding & Polishing
- Application:Round bar and round tube
- Processing diameter:dia meter 16~60 mm
- Processing Length:200~700 mm
- Capacity:5~12 M/MIN
- Control method:Contactor
- Start mode:switch
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
Round Tube Automatic bicycle grinding and polishing machine of bicycle tube | Model：CH-10-20 | |||||||||
Description： | ||||||||||
1. bicycle grinding and polishing machine of bicycle tube is for grinding and polishing the cylinder-shaped outer surface; it's suitable for processing round bars and round tubes | ||||||||||
2. Easy adjustment, fast mold exchange, high effeciency, stable performance. | ||||||||||
3. It adopts gear motor to drive rubber wheel rotation to achieve the workpiece to promote the action, manually loading the workpiece. | ||||||||||
4. Grinding wheel is sample and can be polished repeatly. | ||||||||||
Function | Grinding & Polishing | |||||||||
Application | Round bar and round tube | |||||||||
Processing diameter | Φ16~Φ60 mm | |||||||||
Processing Length | 200~700 mm | |||||||||
Capacity | 5~12 M/MIN | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 13 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Contactor | |||||||||
Start method | Switch | |||||||||
Color | Green | |||||||||
Size | 2100×1100×1350 mm | |||||||||
Weight | 800 KG | |||||||||
Products Description
Product Code | CH-10-20 Round Tube Automatic Grinding & Polishing Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
