Frame Alignment Machine
CH-20-15
1 set
Shenzhen Sea Port of China
Quantity
- bicycle frame alignment machine of bicycle frame is used for check and aligning suspension bicycles after welding assembly of head tube, seat tube, suspension
lugs, suspension device, rear forks and fork ends. - Place of Origin:China
- Function:Checking and Alignment
- Application:Suspension cycle frame
- Central height:145 mm
- Top tube length:Max.650 mm
- Seat tube length:200~460 mm
- Distance between rear fork ends:110~135 mm
- Operation mode:Manual
- Start method:Hand valve
- Control method:Hydraulic valve
- Max. system pressure:7 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

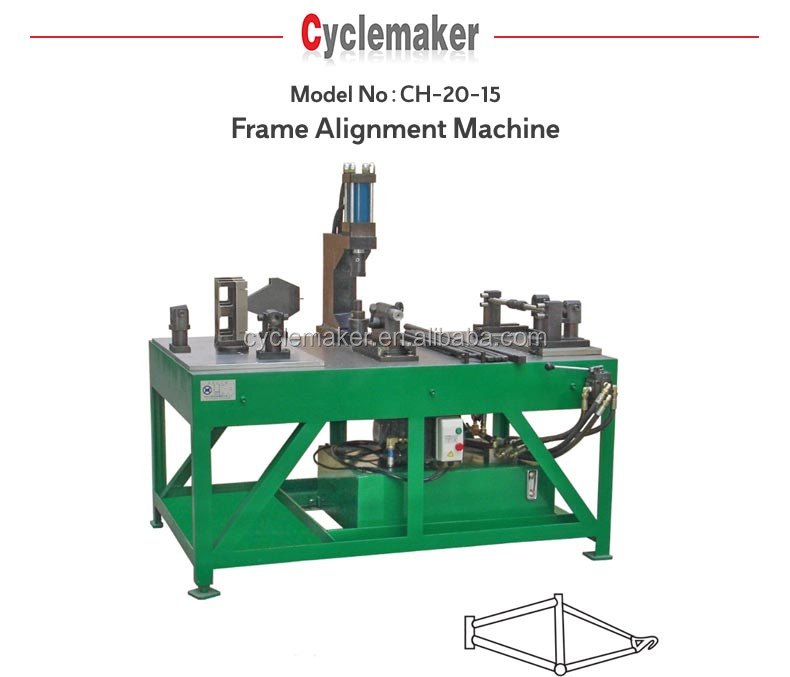

Frame Alignment Machine | Model No.：CH-20-15 | |||||||||
Description： | ||||||||||
1. This machine is used for check and aligning suspension bicycles after welding assembly of head tube, seat tube, suspension lugs, suspension device, rear forks and fork ends. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. It adopt hydraulic cylinder to promote PRESS BLOCK to lock the B.B shell and make sure its position steadly. | ||||||||||
4. Tool and mode can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Checking and Alignment | |||||||||
Application | Suspension cycle frame | |||||||||
Central height | 145 mm | |||||||||
Top tube length | Max.650 mm | |||||||||
Seat tube length | 200~460 mm | |||||||||
Distance between rear fork ends | 110~135 mm | |||||||||
Capacity | 80~120 PCS/HR | |||||||||
Operation mode | Manual | |||||||||
Power | 1.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Hydraulic valve | |||||||||
Start method | Hand valve | |||||||||
Hydraulic working pressure | 5 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Color | Gray | |||||||||
Size | 1220×1600×1600 mm | |||||||||
Weight | 800 KG | |||||||||
Products Description
Product Code | CH-20-15 Frame Alignment Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
