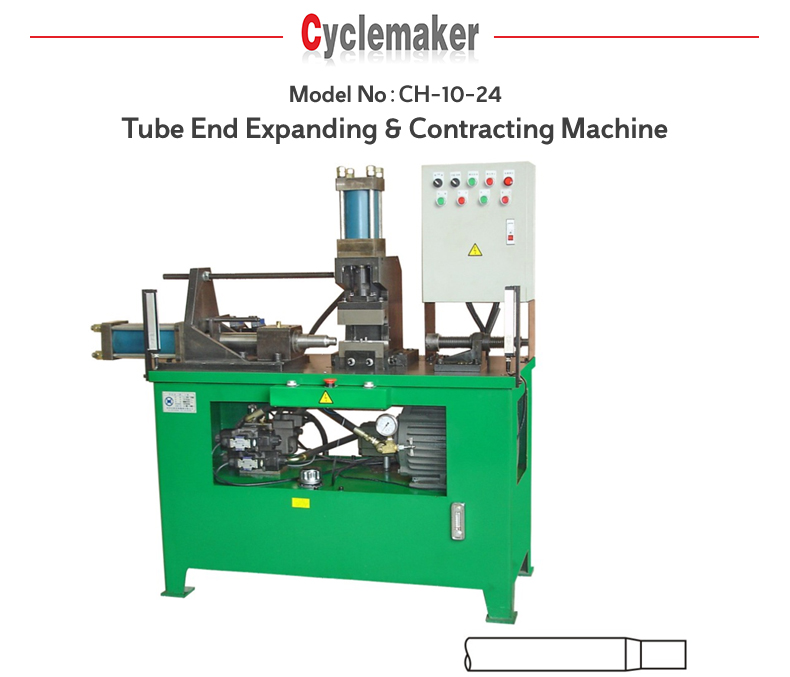

Tube End Expanding & Contracting Machine
CH-10-24
1 set
Shenzhen Sea Port of China
Quantity
- bicycle expanding and contracting machine of bicycle tube is for expanding and contracting tube ends, which is suitable for reforming ends of seat tube or
suspension fork tube - Place of Origin:China
- Function:Expanding or contracting tubes
- Application:Seat tube and suspension fork tube
- Processing diameter:dia meter max 31.8mm
- Processing wall thickness:Max. 2 mm
- Processing Length:150~1060 mm
- Control method:Relay
- Start mode:Double switch
- Hydraulic working pressure:10 MPa
- Max. system pressure:14 MPa
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Production Introduction | ||||||||||
bicycle expanding and contracting machine of bicycle tube | Model：CH-10-24 | |||||||||
Description： | ||||||||||
1.bicycle expanding and contracting machine of bicycle tube is a special equipment for expanding and contracting tube ends, which is suitable for reforming ends of seat tube or suspension fork tube; | ||||||||||
2. Easy adjustment, fast mold exchange, high effeciency, stable performance. | ||||||||||
3. It adopt hydraulic cylinder to drive the expending or contracting mold shaft and clamping mold to forward and backward. The travel switch controls the stroke. | ||||||||||
4. Simple size mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Expanding or contracting tubes | |||||||||
Application | Seat tube and suspension fork tube | |||||||||
Processing diameter | Max. Φ31.8 mm | |||||||||
Processing wall thickness | Max. 2 mm | |||||||||
Processing Length | 150~1060 mm | |||||||||
Capacity | 200~400 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 7.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | Relay | |||||||||
Start method | Double switch | |||||||||
Hydraulic working pressure | 10 MPa | |||||||||
Max. system pressure | 14 MPa | |||||||||
Color | Green | |||||||||
Size | 2100×800×1400 mm | |||||||||
Weight | 800 KG | |||||||||
Product Code | CH-10-24 Tube End Expanding & Contracting Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
