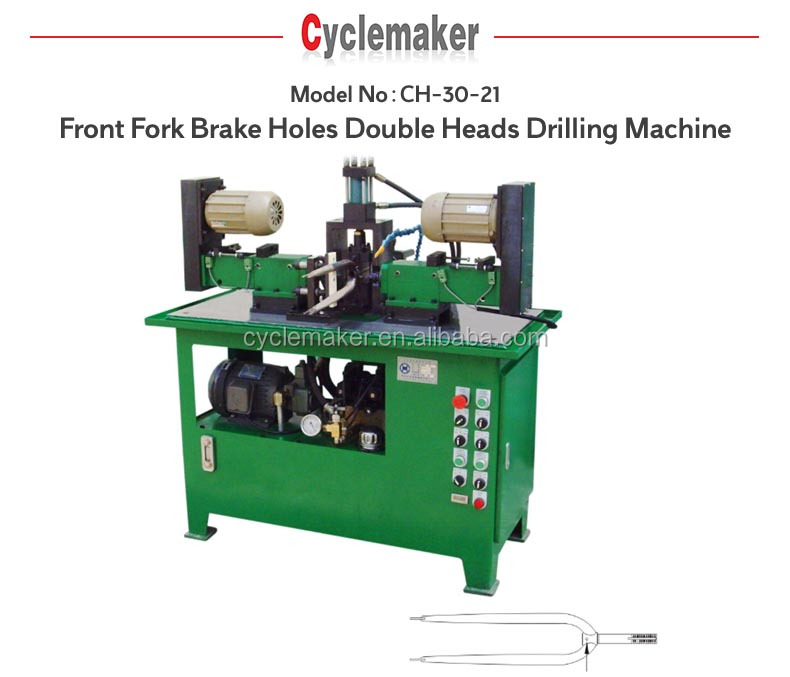

Front Fork Brake Holes Double Heads Drilling Machine

Model No.：CH-30-21

Description：

1. This machine is used for drilling double brake holes on front fork. Which is one of process in the front fork manufacturing
line.

2. It is efficient, stable and easy for adjusting and
changing molds.

3. Adopting cylinder to clamp workpiece, hydraulic power unit drives drilling tool forward/backward. Sensor switch controls the
processing stroke.

4. Mode can be customized.

Function

Drilling holes

Application

Front fork

Stem Dia.

Φ25.4~Φ28.6 mm

Capacity

300~400 PCS/HR

Operation mode

Semi-auto

Power

3.7 KW

Voltage

3P 380V 50Hz

Control method

Relay

Start method

Sensor switch

Hydraulic working pressure

3.5 MPa

Max.system pressure

7 MPa

Color

Green

Size

2000×900×1300 mm

Weight

600 KG

Product Code

CH-30-21 Front Fork Brake Holes Double Heads Drilling Machine

Place of Origin

Shenzhen,China

Brand Name

New Canghai

Certification

ISO9001,ISO14001,CE

MOQ

1 SET

Supply Ability

100SETS/Month

Packaging

Protective film/Pollywood Case/Container

Shipping Port

Shenzhen Sea Port of China

Trade Terms

FOB CFR CIF

Lead time

15 working days for mold.

45 working days for machine after receiving deposit

Total Employees

200

Payment term

30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight

Shipping Terms

20'GP container ,40'GP container,40'HQ container,LCL by sea
