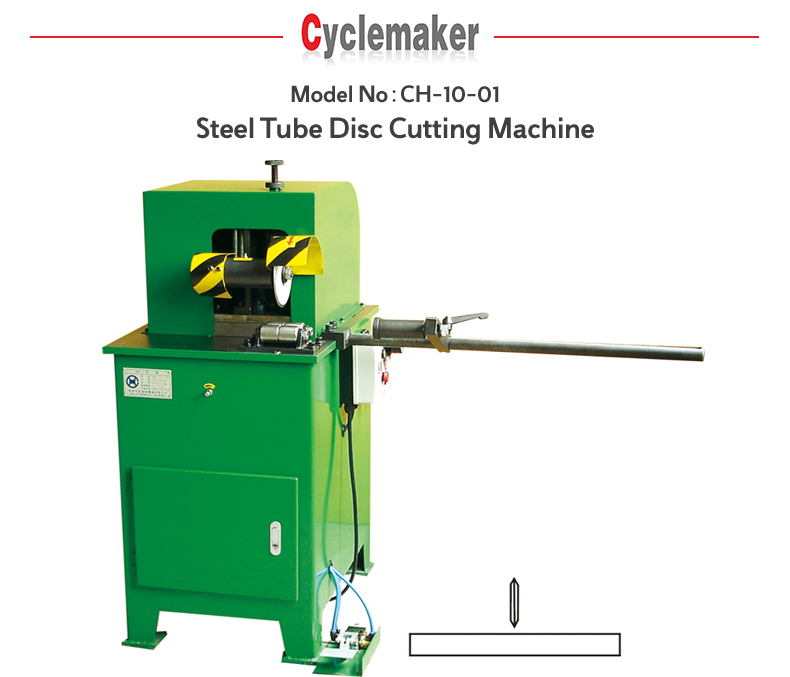

Steel Tube Disc Cutting Machine
CH-10-01
1 set
Shenzhen Sea Port of China
Quantity
- bicycle disc cutting machine is a special equipment which is used for cutting round tubes with specified length.
- Place of Origin:China
- Function:Cutting tubes material
- Application:Round tubes
- Outside diameter of tube range:dia meter 12~70 mm
- Cutting length range:10~790 mm
- Tube thickness range:0.7~2 mm
- Size of cutter:dia meter 150*dia meter 25.4*4 mm
- Pneumatic system pressure:0.3~0.6 MPa
- Operation Mode:Semi-automatic
- Control Mode:Magnetic starter
- Start mode:Pedal switch
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
| steel tube disc cutting machine of bicycle tube | Model：CH-10-01 | |||||||||
Description： | ||||||||||
1. steel tube disc cutting machine of bicycle tube is a special equipment which is used for cutting round tubes with specified length. | ||||||||||
2. Easy to adjust equipment. tool change fast. high efficiency. stable performance. | ||||||||||
3. This machine adopt pedal switch to control the cylinder to push the block to forward and backward the cutter. the cutting length shall be adjusted as required. | ||||||||||
4. Cutter can be repeatedly grinding. long service life. | ||||||||||
Function | Cutting tubes material | |||||||||
Application | Round tubes | |||||||||
Outside diameter of tube range | Φ12~Φ70 mm | |||||||||
Cutting length range | 10~790 mm | |||||||||
Tube thickness range | 0.7~2 mm | |||||||||
Size of cutter | Φ150×Φ25.4×4 mm | |||||||||
Capacity | 700~1000 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 1.1 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Contral method | Magnetic starter | |||||||||
Start method | Pedal switch | |||||||||
Pneumatic system pressure | 0.3~0.6 MPa | |||||||||
Machine Color | Gray | |||||||||
Size | 700×850×1350 mm | |||||||||
Weight | 180 KGS | |||||||||
Product Code | CH-10-01 Steel Tube Disc Cutting Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
