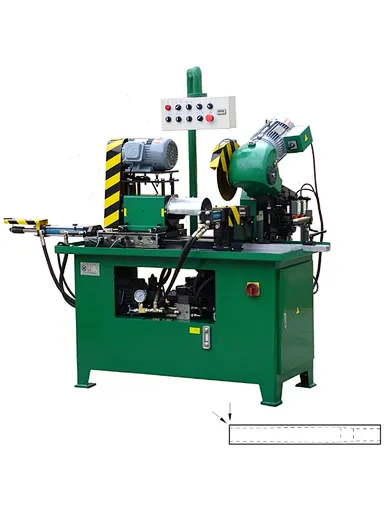

Front Fork Stem Cutting & Chamfering Machine
CH-30-23
1 set
Shenzhen Sea Port of China
Quantity
- bicycle cutting and chamfering machine of bicycle front fork is used for cutting and chamfering front fork stem
- Place of Origin:China
- Function:Cutting & Chamffering
- Application:Stem/round tube
- Processing dia.:dia meter 25.4~28.6
- Processing length:170~350 mm
- Operation Mode:Semi-automatic
- Control Mode:PLC
- Start mode:Pedal switch
- Hydraulic system pressure:4 Mpa
- Max,system pressure:7 Mpa
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||
Information Table | ||||||||||
Front Fork Stem Cutting & Chamfering Machine | Model No.：CH-30-23 | |||||||||
Description： | ||||||||||
1. This machine is used for cutting and chamfering front fork stem; | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting hydraulic cylinder to clamp workpiece and drive cutting tool forward/backward. Position switch controls the processing stroke. Positioning mechanism is for keeping the precision of workpiece length. | ||||||||||
4. Mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Cutting & Chamfering | |||||||||
Application | Stem/round tube | |||||||||
Processing dia. | Φ25.4~Φ28.6 mm | |||||||||
Processing length | 170~350 mm | |||||||||
Capacity | 120~200 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 4.65 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Pedal switch | |||||||||
Hydraulic system pressure | 4 MPa | |||||||||
Max,system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 2000×900×1700 mm | |||||||||
Weight | 700 KG | |||||||||
Product Code | CH-30-23 Front Fork Stem Cutting & Chamffering Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
