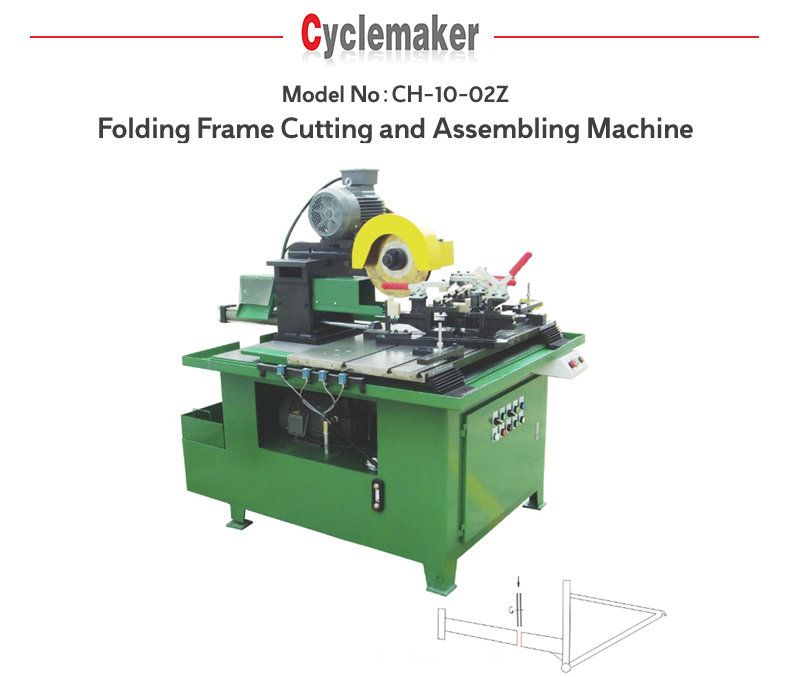

Folding Frame Cutting and Assembling Machine
CH-10-02Z
1 set
Shenzhen Sea Port of China
Quantity
- bicycle cutting and assembling machine of bicycle tube is for manufacturing folding frame by cutting and installing folding box.
- Place of Origin:China
- Function:Cutting and Assembling Machine
- Application:folding frame
- Processing dia.:dia meter38~dia meter64 mm
- Cutting length:8~56 mm
- RPM of main axis:50/100 r/min
- Sawing size:dia meter 315 mm
- Pneumatic system pressure:3.5 MPa
- Operation Mode:Semi-automatic
- Control method:PLC
- Start mode:Switch
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

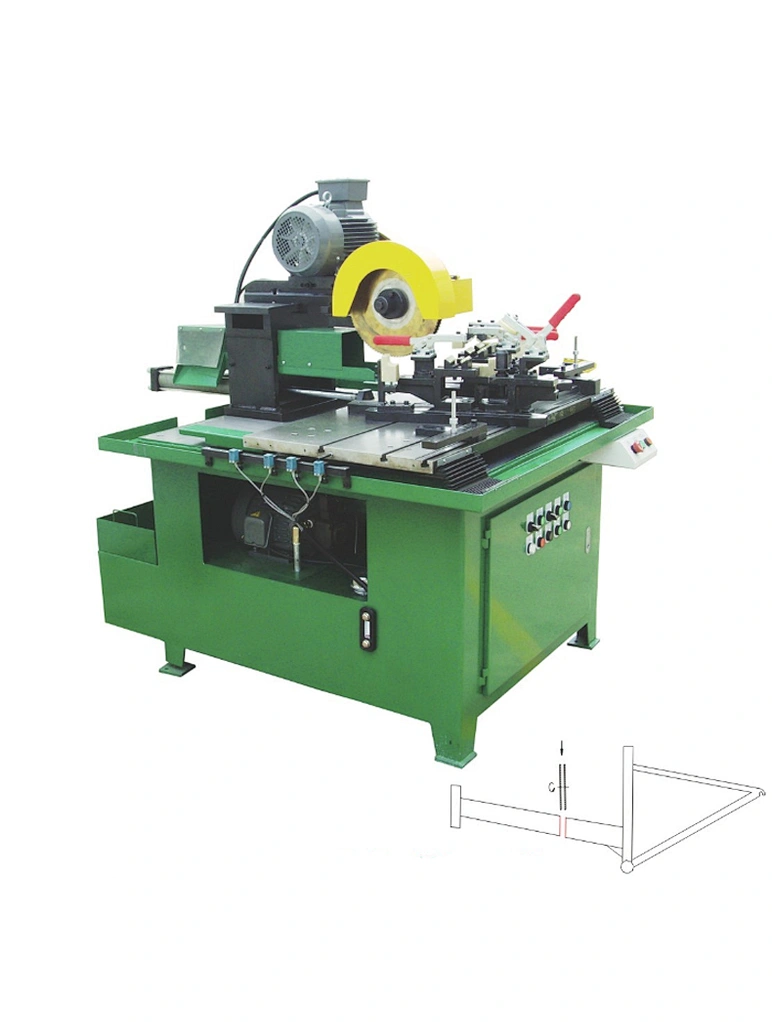

Folding Frame bicycle cutting and assembling machine | Model：CH-10-02Z | |||||||||
Description： | ||||||||||
1. bicycle cutting and assembling machine is for manufacturing folding frame by cutting and installing folding box. | ||||||||||
2. Easy-adjustment, High efficiency, Stable performance. | ||||||||||
3. Adopt corner hydraulic cylinder to clamp frame tubes, there's multi-point positioning mechanism on front fork, rear fork and B.B shell to ensure accurate positioning. With cycle cooling system; | ||||||||||
4. Saw blade can be repeated grinding, long life; simple mold size which can be customized; | ||||||||||
ITEMS | VALUE | |||||||||
Function | Cutting and Assembling Machine | |||||||||
Application | folding frame | |||||||||
Processing dia. | Φ38~Φ64 mm | |||||||||
Cutting length | 8~56 mm | |||||||||
RPM of main axis | 50/100 r/min | |||||||||
Operation mode | Semi-auto | |||||||||
Sawing size | Φ315 mm | |||||||||
Power | 3.85 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Switch | |||||||||
Pneumatic system pressure | 3.5 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1500×1100×1600 mm | |||||||||
Weight | 650 KG | |||||||||
Products Description
Product Code | CH-10-02Z Folding Frame Cutting and Assembling Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
