Auto Head Tube and B.B Shell Chamfering and Facing Machine (steel)
CH-10-32
1 set
Shenzhen Sea Port of China
Quantity
- bicycle chamfering and facing machine of bicycle tube is used for processing both ends of round tube by boring,chamfering and facing head tubes and B.B shells.
- Place of Origin:China
- Function:Boring, chamfering and facing
- Application:Steel head tube & B.B shell
- Processing dia.:dia meter 35~60 mm
- Processing length:68~220 mm
- Control method:PLC
- Start mode:Press button
- Hydraulic working pressure:4 MPa
- Max. system pressure:7 MPa
- Air working pressure:0.4~0.6 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

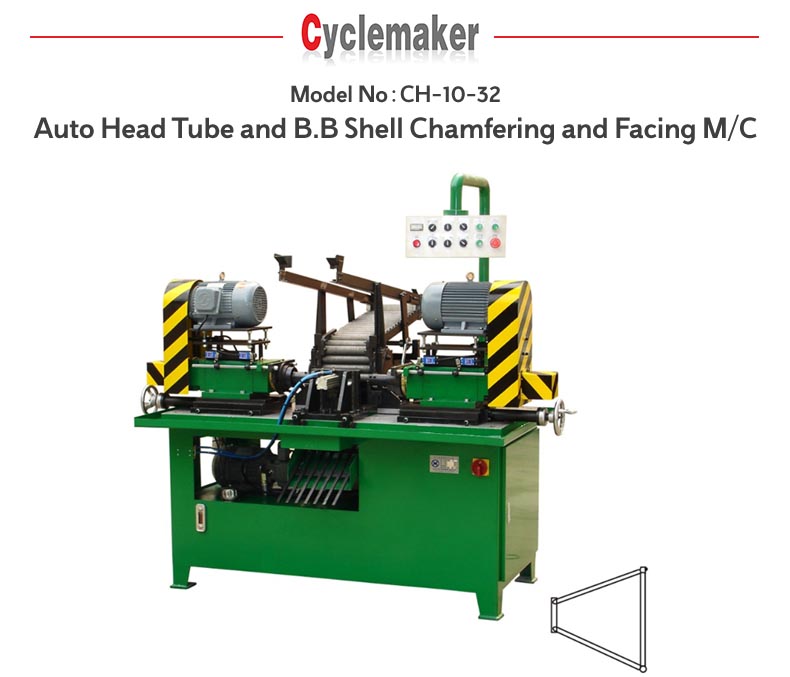

Auto Head Tube and B.B Shell bicycle chamfering and facing machine of bicycle tube (steel) | Model No.：CH-10-32 | |||||||||
Description： | ||||||||||
1.bicycle chamfering and facing machine of bicycle tube is used for processing both ends of round tube by boring, chamfering and facing head tubes and B.B shells. | ||||||||||
2. Easy to adjust equipment, tool change fast, high efficiency, stable performance. | ||||||||||
3. Automatically loading and unloading. | ||||||||||
4. Mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Boring, chamfering and facing | |||||||||
Application | Steel head tube & B.B shell | |||||||||
Processing dia. | Φ35~Φ60 mm | |||||||||
Processing length | 68~220 mm | |||||||||
Capacity | 180~240 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 8 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Press button | |||||||||
Hydraulic system pressure | 4 MPa | |||||||||
Max system pressure | 7 MPa | |||||||||
Air system pressure | 0.4~0.6 MPa | |||||||||
Color | Green | |||||||||
Size | 2400×2400×1800 mm | |||||||||
Weight | 1800 KG | |||||||||
Products Description
Product Code | CH-10-32 Auto Head Tube and B.B Shell Chamfering and Facing Machine (steel) |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
