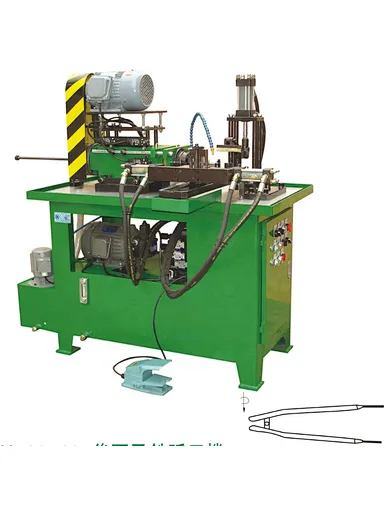

Chain Stay Mittering Machine (Milling Type)
CH-20-12
1 set
Shenzhen Sea Port of China
Quantity
- bicycle chain stay mittering machine of bicycle machine is used for milling the arc of chain stay to make sure to connect smoothly with B.B shell. It's suitable for steel.
- Place of Origin:China
- Function:Milling arc
- Application:Chain stay
- Processing dia.:DIA 25.4~31.8 mm
- Processing length:16"~28"frame(Max.700)
- Angle of milling:0°~90°
- Control method:PLC
- Applicable Distance:112~155 mm (Dropout Distance)
- Start method:Pedal switch
- Hydraulic working pressure:2.5~3.5 MPa
- Max. system pressure:7 MPa
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

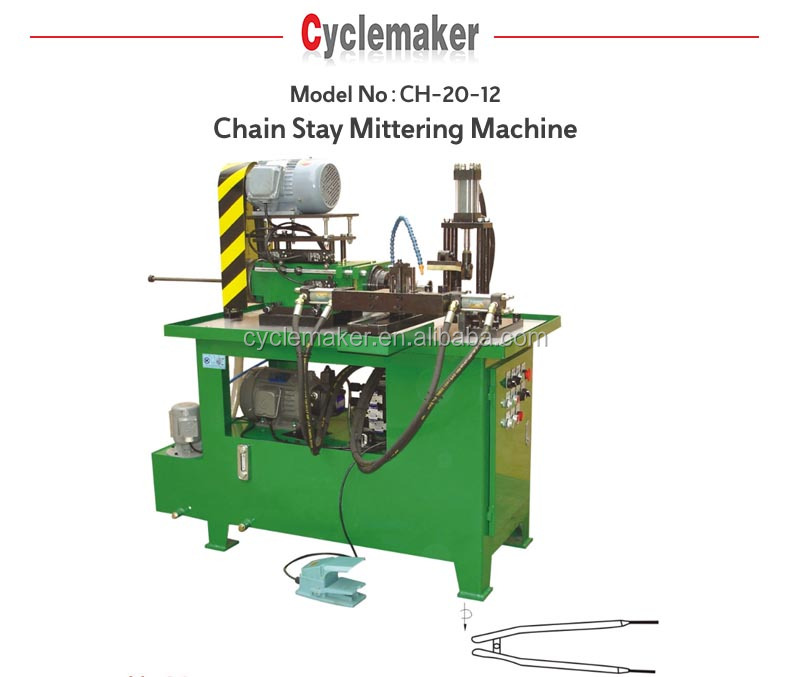

Chain Stay Mittering Machine (Milling Type) | Model No.：CH-20-12 | |||||||||
Description： | ||||||||||
1. This machine is used for milling the arc of chain stay to make sure to connect smoothly with B.B shell. It's suitable for steel and alloy frame. | ||||||||||
2. It is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. It adopt special driver to controls the milling tool, Position switch controls the stroke; Hydraulic cylinder clamp the workpiece, Cycle-cooling system. | ||||||||||
4. Mold can be customized. | ||||||||||
ITEMS | VALUE | |||||||||
Function | Milling arc | |||||||||
Application | Chain stay | |||||||||
Processing dia. | Φ25.4~Φ31.8 mm | |||||||||
Processing length | 16"~28"frame | |||||||||
Capacaity | 300 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 3.15 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC | |||||||||
Start method | Pedal | |||||||||
Hydraulic working pressure | 2.5~3.5 MPa | |||||||||
Max. system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1450×1200×1350 mm | |||||||||
Weight | 600 KG | |||||||||
Products Description
Product Code | CH-20-12 Chain Stay Mittering Machine (Milling Type) |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
