handlebar bulging machine of bicycle machine for bicycle manufacturing
CH-50-01C
1 set
Shenzhen Sea Port of China
Quantity
- bicycle bulging machine for bicycle handlebar is a special equipment for bulging round tubes (pipe expansion).
- Place of Origin:China
- Function:handlebar bulging machine is for bulging tubes ( pipe-expansion)
- Application Products:Tubes (handlebar)
- Length of tube:500~1400 mm
- Control Mode:Relay
- Start mode:Press button
- Hydraulic pressure for working:10 MPa
- Max.Compressed air pressure:14 MPa
Products Description
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Product Introduction | ||||||||||

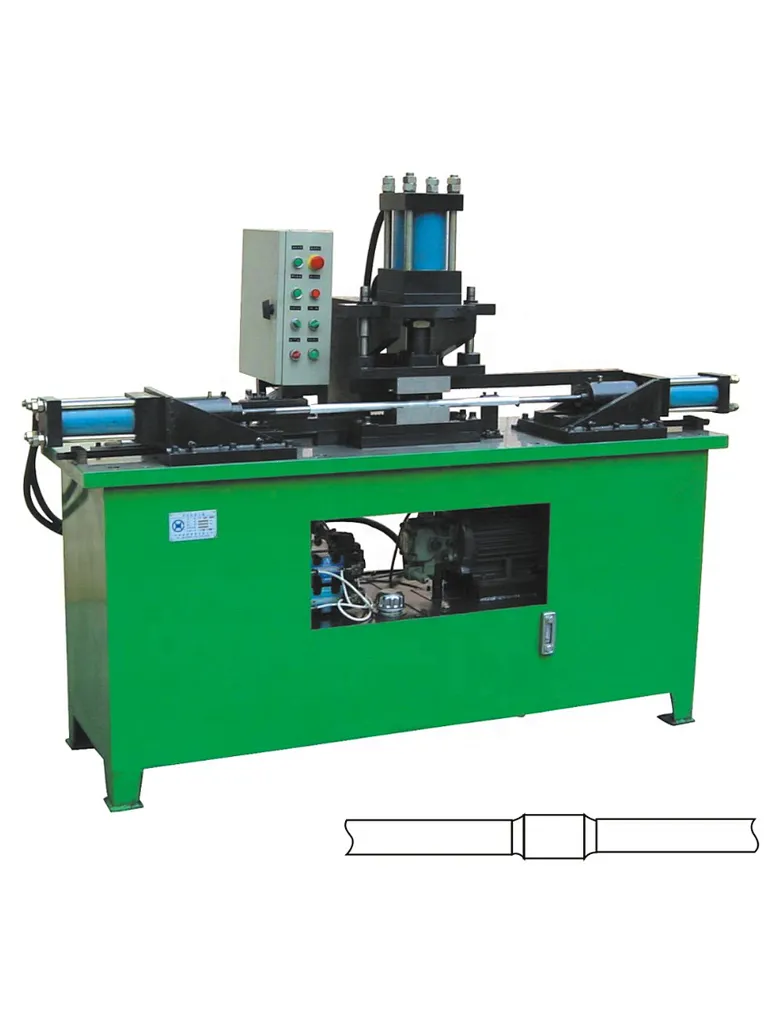

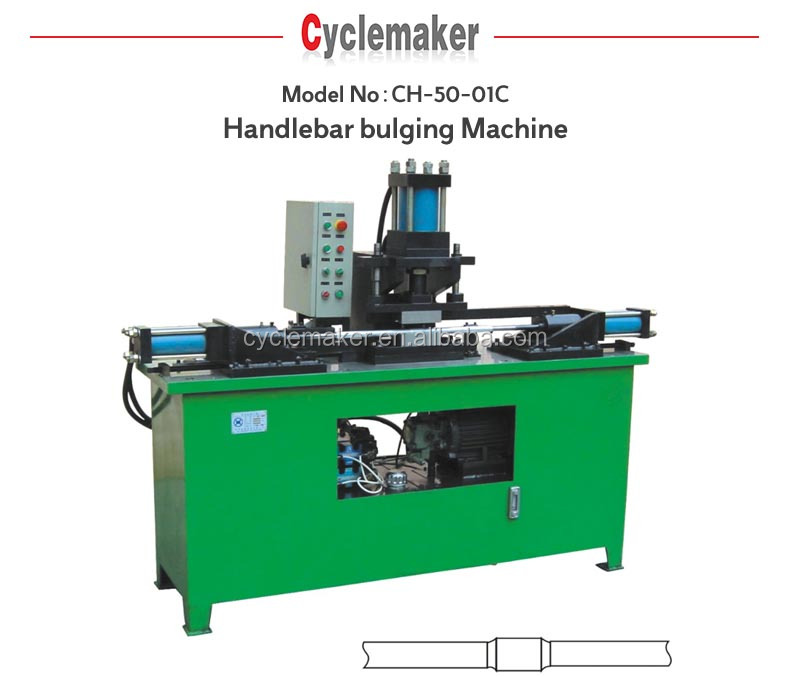

handlebar bulging machine of bicycle machine | Model NO.：CH-50-01 | |||||||||
Description: | ||||||||||
1. handlebar bulging machin is a special equipment for bulging round tubes (pipe expansion). It’s suitable for bicycle handlebar processing for bicycle manufacturing. | ||||||||||
2.handlebar bulging machin is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting hydraulic cylinder to drive the pressing-block and clamp-block forward/backward. Pressure relay controls bulging mechanism forward/backward. Position switch controls opening time. | ||||||||||
4. handlebar bulging machin mold can be customized. | ||||||||||
ITEMS | CH-50-01 | |||||||||
Function | bulging tubes ( pipe-expansion) | |||||||||
Application | handlebar bulging machine of bicycle machine for bicycle manufacturing | |||||||||
Length of tube | 500~1400 mm | |||||||||
Capacity | 200~400 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
POWER | 5.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control mode | Relay | |||||||||
Start mode | Press button | |||||||||
Hydraulic pressure for working | 10 MPa | |||||||||
Max.Compressed air pressure | 14 MPa | |||||||||
Color | Green | |||||||||
Size | 2650×800×1600 mm | |||||||||
Weight | 1150 KG | |||||||||
Product Code | CH-50-01 Handlebar bulging Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
