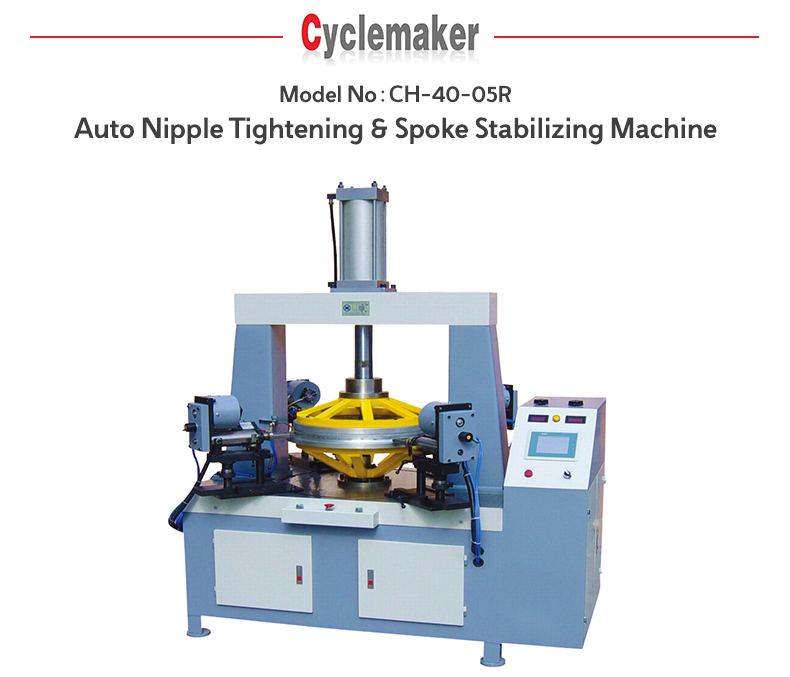

Model No：CH-40-05R

Bicycle Wheel Machine Feature summary

1、This kind of Bicycle Wheel Machine is used for tigtening and stabiling spokes of the Alloy Wheel which is suitable for virous specifications and designs of  Wheel.

2、It is stable, easy operation and efficient.

3、Tightening & Spoke Stabilizing Machine is using gear motor to rotate the Alloy Wheel and 4 torque motors to control tightening force (adjustable).

Function

tigtening and stabilizing spokes machine of the Wheel

Applicable Products

Steel and Alloy Wheel by change molds

Size of Rims

12"~28"

Rim width

10~100 mm

Capacity

120~180 PCS/HR

Operation mode

Semi-automatic

Power

1 KW

Voltage

3P 380V 50Hz

Control Mode

PLC + Touch Screen

Start mode

Two buttons

Max. system Compressed air Pressure

0.4~0.6 MPa

Color

Grey + White

Size

L1650×W1200×H2100 mm

Weight

1100 KG

Place of Origin

Shenzhen,China

Brand Name

New Canghai

Certification

ISO9001,ISO14001,CE

MOQ

1 SET

Supply Ability

100SETS/Month

Packaging

Protective film/Pollywood Case/Container

Shipping Port

Shenzhen Sea Port of China

Trade Terms

FOB CFR CIF

Lead time

15 working days for mold.

45 working days for machine after receiving deposit

Total Employees

200

Payment term

30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight

Shipping Terms

20'GP container ,40'GP container,40'HQ container,LCL by sea
