Auto Tire Mounting Machine
CH-40-10
1 set
Shenzhen Sea Port of China
Quantity
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Bicycle Wheel Machine Product Introduction | ||||||||||

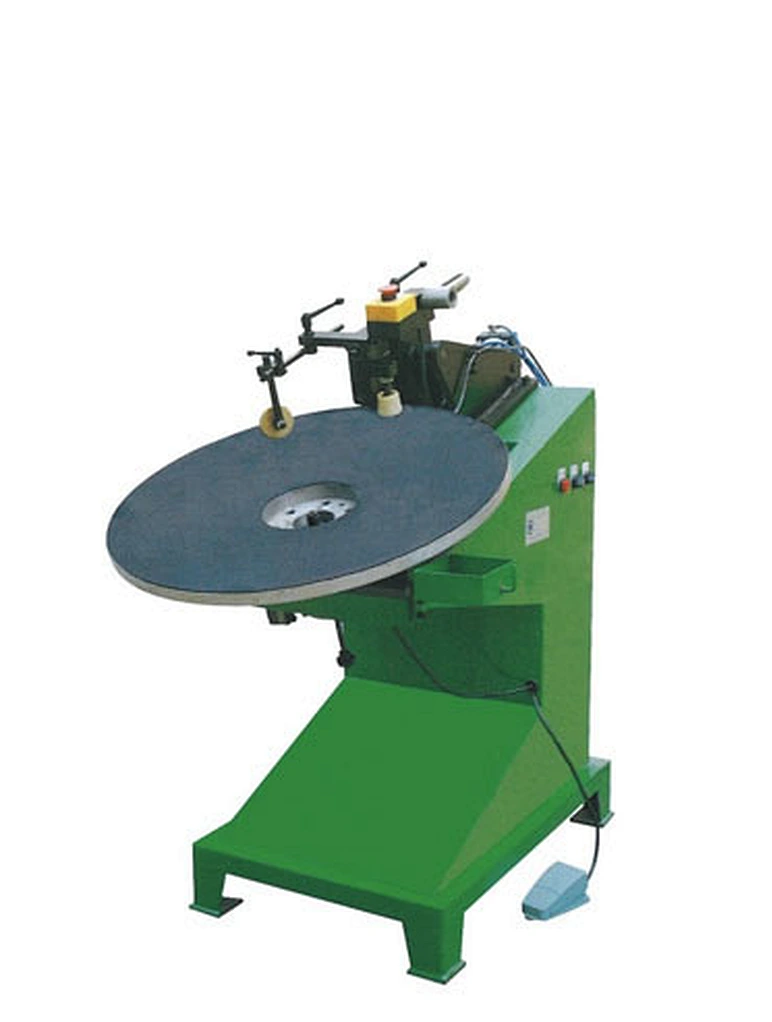

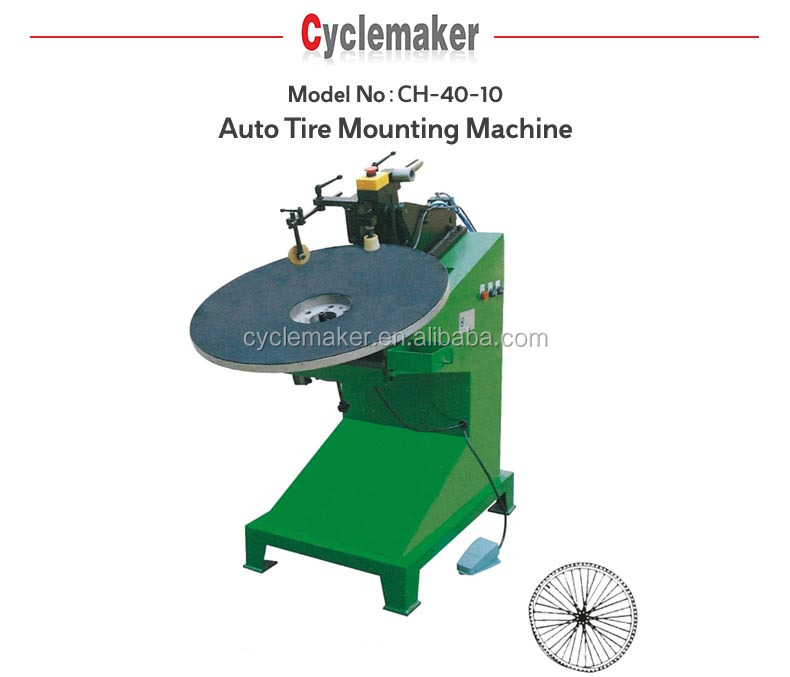

Auto Tire Mounting Machine | Model NO.：CH-40-10 | |||||||||
Bicycle Wheel Machine Description： | ||||||||||
1、This kind of Bicycle Wheel Machine is used for fitting tires on the Alloy Wheel with tire inflation unit, which is suitable for virous specification of tire. | ||||||||||
2、Tire Mounting Machine has the advantages of convenient adjustment, high efficiency, reasonable structure and stable performance. | ||||||||||
3、The air cylinder is used to push the pressure bar to press the tire and rim, the reducer motor drives the rotary table to rotate the Alloy Wheel rim, and the tire is installed into the tire groove of the Alloy Wheel rim; the pneumatic device can inflate the tire. | ||||||||||
4、Tire Mounting Machine mold size is simple, the user can make according to the need. | ||||||||||
| Bicycle Wheel Machine | Auto Tire Mounting Machine | |||||||||
Fuction | Tire fitting&inflation | |||||||||
Application Products | Wheel | |||||||||

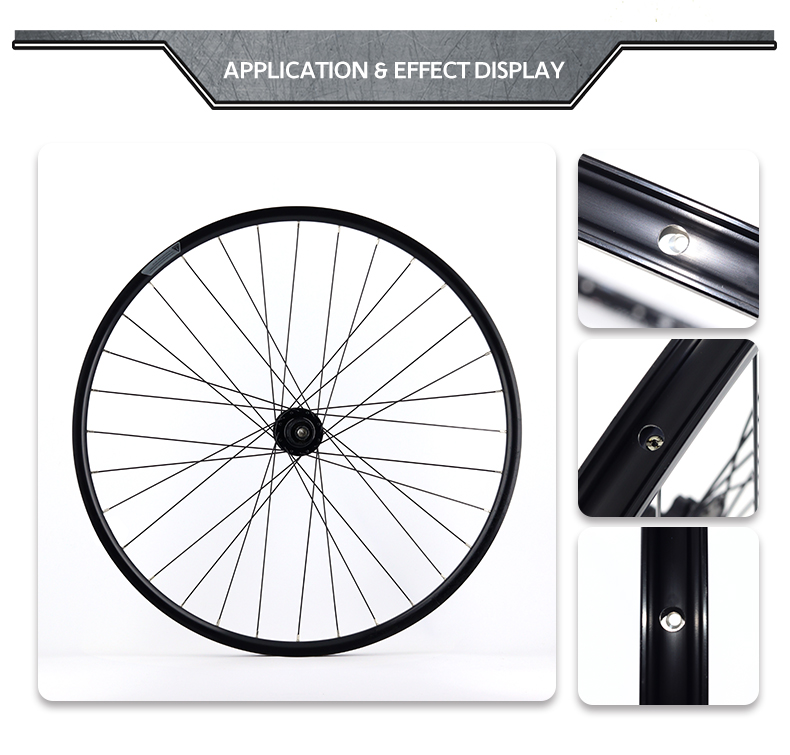

Alloy Wheel | 12"~28" | |||||||||
Capacity | 200~300 PCS/HR | |||||||||
Operation mode | Semi-automatic | |||||||||
Power | 0.75 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control Mode | Relay | |||||||||
Start Model | Pedal switch | |||||||||
Compressed air pressure of working | 0.4~0.6 MPa | |||||||||
Color | Green | |||||||||
Size | 1300×900×1400 mm | |||||||||
Weight | 250 KG | |||||||||
Bicycle Wheel Machine | CH-40-10 Auto Tire Mounting Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |

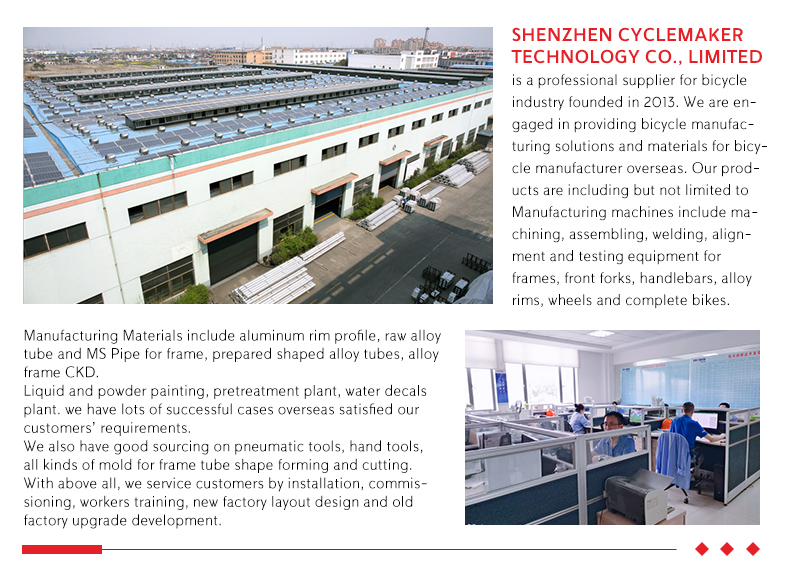

About Us
