Auto Tire Inflating Machine
CH-40-24
1 set
Shenzhen Sea Port of China
Quantity
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Bicycle Wheel Machine Product Introduction | ||||||||||

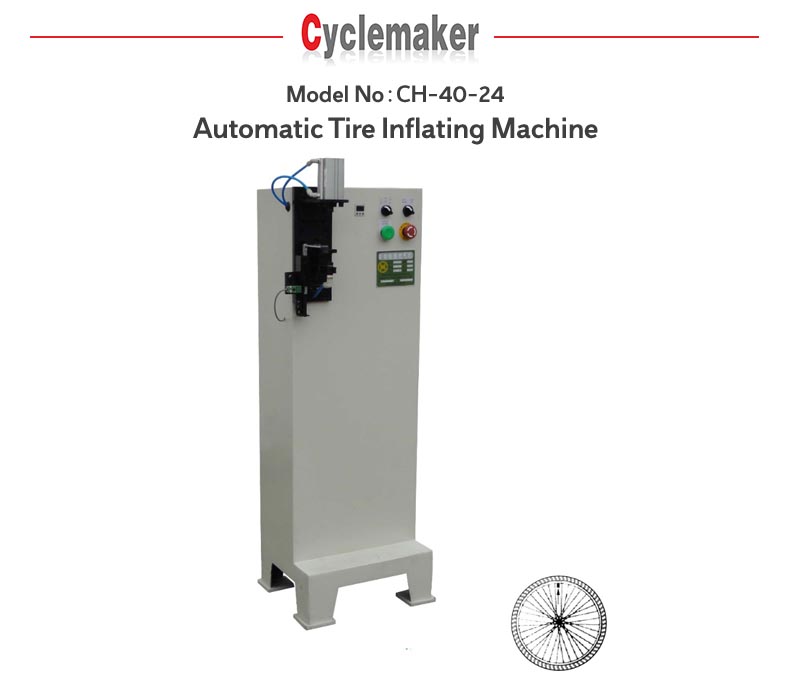

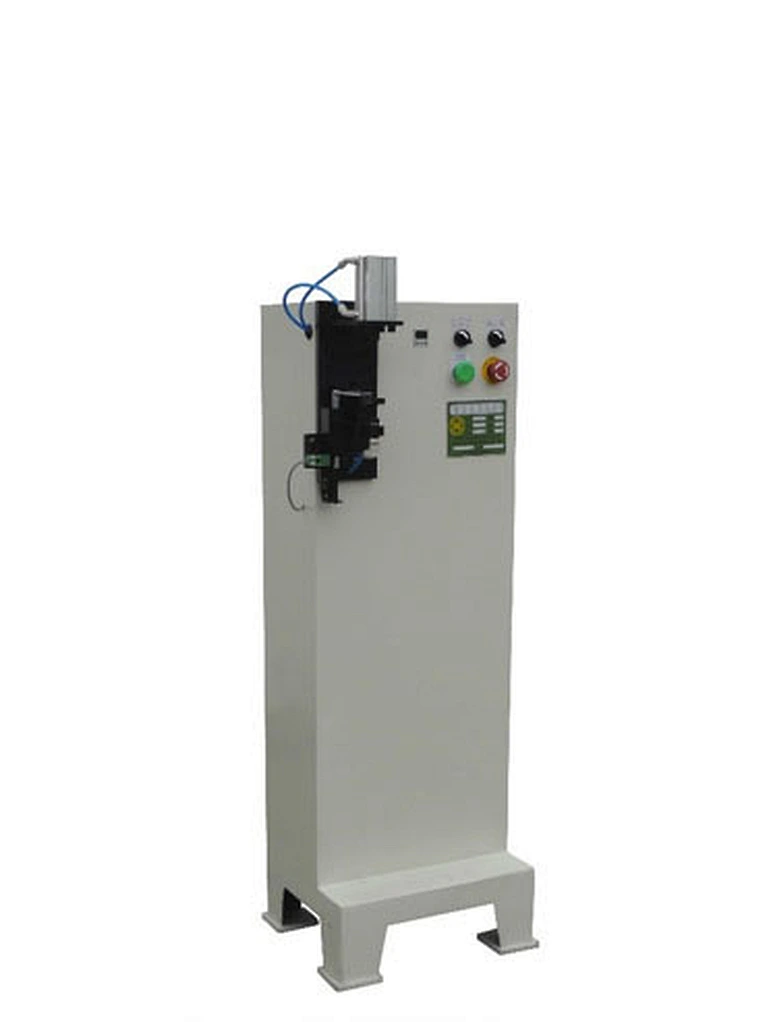

Auto Tire Inflating Machine | Model NO.：CH-40-24 | |||||||||
Bicycle Wheel Machine Description： | ||||||||||
1、This kind of Bicycle Wheel Machine is used for fitting tires on the Alloy Wheel with auto tire inflating unit., which is suitable for virous specification of Alloy Wheel tire. | ||||||||||
2、This machine is convenient adjustment, high efficiency, reasonable structure and stable performance. | ||||||||||

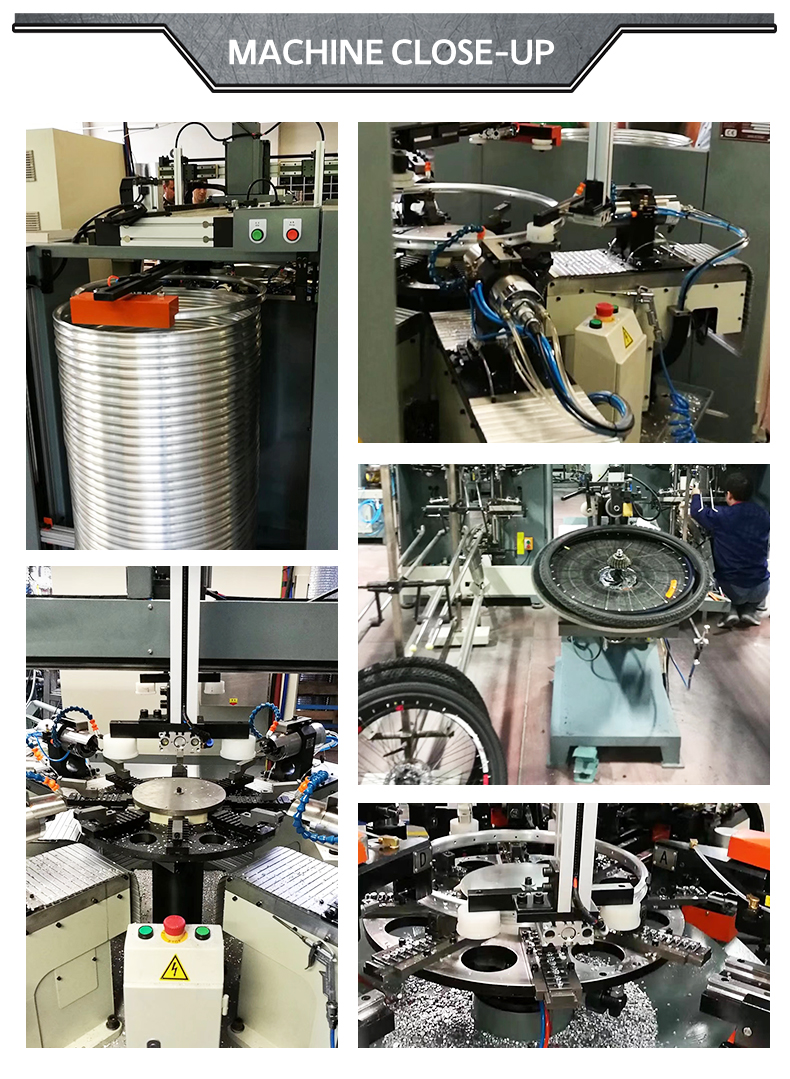

3、The air cylinder is used to push the pressure bar to press the tire and rim, the reducer motor drives the rotary table to rotate the Alloy Wheel rim, and the tire is installed into the tire groove of the of bicycle Alloy Wheel rim;the pneumatic device can inflate the tire. | ||||||||||
4、The mold size is simple, the user can make according to the need. | ||||||||||
Bicycle Wheel Machine | Auto Tire Inflating Machine | |||||||||
Fuction | auto tire inflating | |||||||||

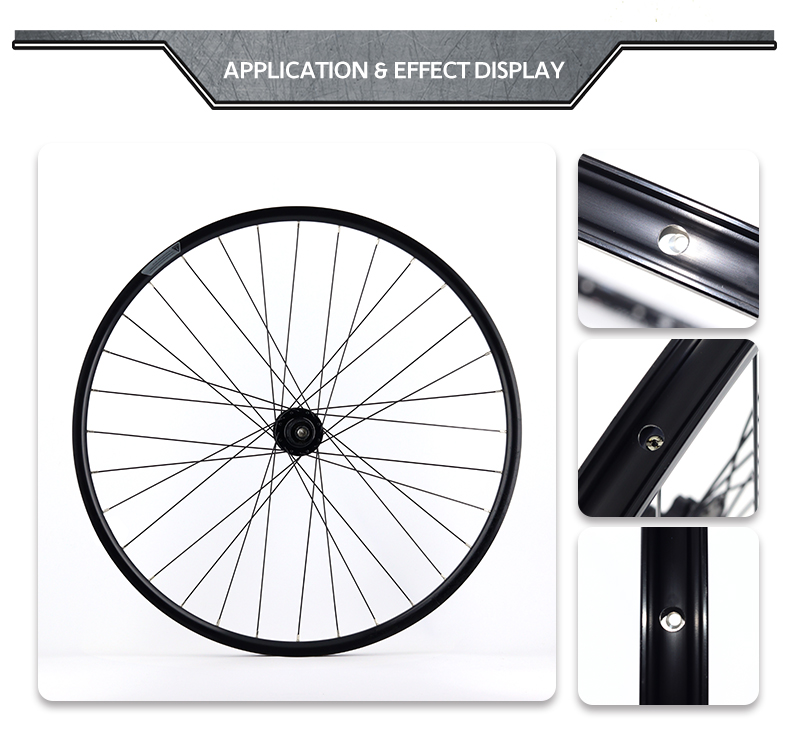

Application Products | Alloy Wheel | |||||||||
Size of Rims | 12"~29" | |||||||||
Capacity | 120 PCS/HR | |||||||||
Operation mode | Automatic | |||||||||
Power | 1 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control Mode | Solenoid Valve | |||||||||
Start Model | Switch | |||||||||
Compressed air pressure of working | 0.4~0.6 MPa | |||||||||
Color | Green | |||||||||
Size | 400×350×1200 mm | |||||||||
Weight | 120 KG | |||||||||
Bicycle Wheel Machine | CH-40-24 Auto Tire Inflating Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
