Alloy Rim Pin Inserting Machine
CH-80-03Y
1 set
Shenzhen Sea Port of China
Quantity
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Bicycle Rim Machine Product Introduction | ||||||||||

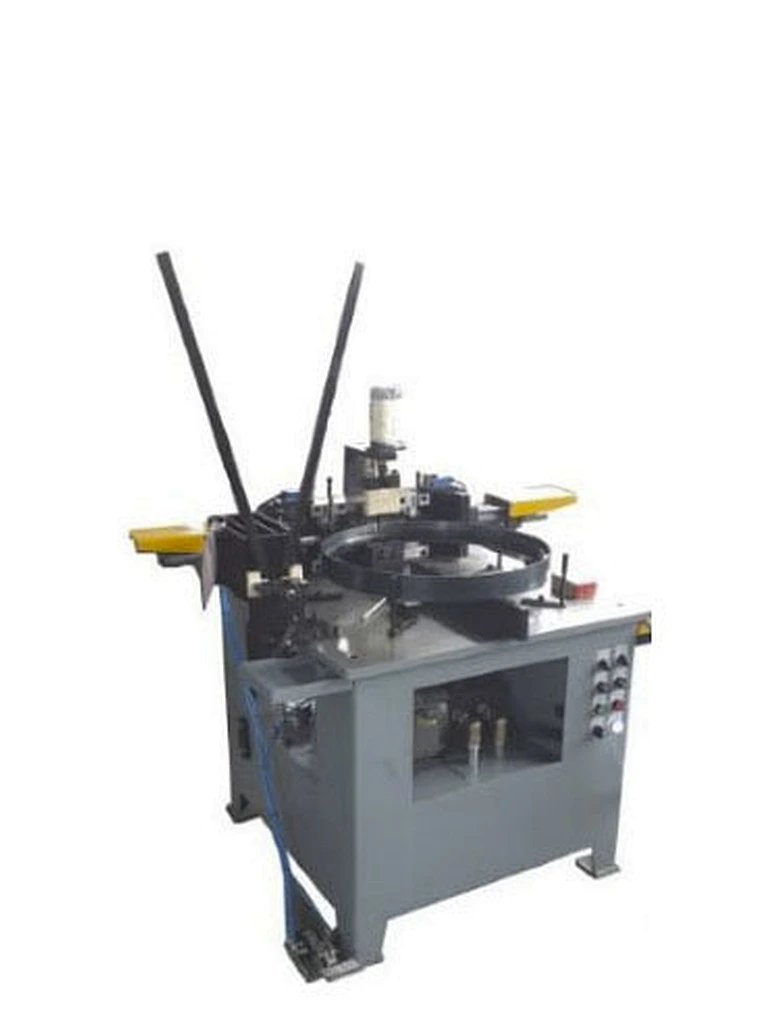

| Alloy Rim Pin Inserting Machine | Model NO.：CH-80-03Y | |||||||||
Bicycle Rim Machine Description: | ||||||||||
1. This kind of Bicycle Rim Machine is special for loading of the pins onto rim and with each adapted belt for each size of Alloy Rim. | ||||||||||
2. Alloy Rim Pin Inserting Machine is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Adopting hydraulic cylinder to drive the sliding block to close or release the steel belt. Position switch controls the processing stroke. Air cylinder drive the clamp-block to hold the rim to ensure it's perfectly match. | ||||||||||
4. Bicycle Rim Machinee : Clamp-block and steel belt can be customized. | ||||||||||
| Bicycle Rim Machine | Alloy Rim Pin Inserting Machine | |||||||||
Function | Pin Inserting | |||||||||
Application | Alloy Rim | |||||||||
Dia. of rims | 12"~28"mm | |||||||||
Capacity | 350~450 PCS/HR Alloy Rim | |||||||||
Operation Mode | Semi-automatic | |||||||||
Power | 2.2 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control mode | Relay | |||||||||
Start mode | Press button | |||||||||
Hydraulic pressure of working | 5 MPa | |||||||||
Max.System hydraulic pressure | 7 MPa | |||||||||
Compressed air pressure for working | 0.4~0.6 MPa | |||||||||
Color | Green | |||||||||
Size | 1400×900×1300 mm | |||||||||
Weight | 450 KG |   | ||||||||
Bicycle Rim Machine | Alloy Rim Pin Inserting Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
