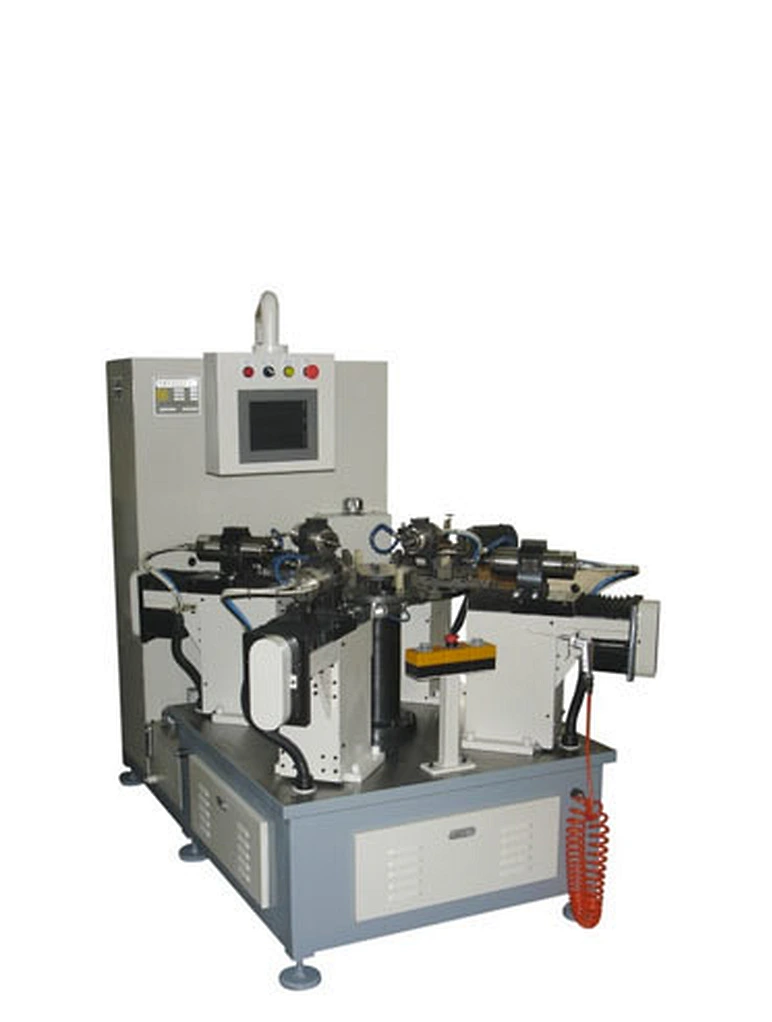

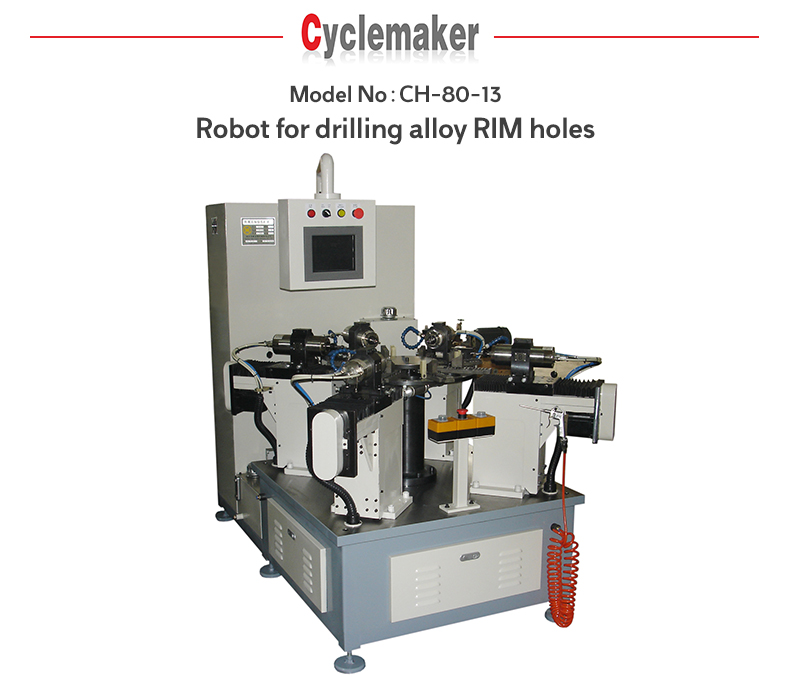

Bicycle Rim Machine:

Model No.: CH-80-13

Bicycle Rim Machine Feature summary

1. This kind of Bicycle Rim Machine is used for drilling spoke holes and valve hole on Alloy Rim.

2. It is easy for operation and adjustment, efficient and stable.

3. The drilling times and feeding speed could be setup from Panel screen.

Bicycle Rim Machine

Function

Drill Alloy Rim holes

Aplicable

Single&Double&Triple wall Alloy Rim.

Dia. Of rims

12”~ 29”of Alloy Rim

Height of rim

Max.40 mm(Optional Max.60mm)

Width of rim

18~40 mm(Optional 18~110mm)

Updown holes

Maxi. 20 mm(Optional 18~40mm)

Number of holes

16~144 holes

Capacity

100~200 PCS/HR

Operation mode

Semi-auotomatic

Power

9 KW

Voltage

3Phase 380V 50Hz

Control Mode

PLC + Screen

Drilling speed

RPM: up to 22,000

Start mode

Button

Compressed air pressure for working

0.3~0.6 MPa

precision

±0.3-0.5mm of holes distance

Color

Grey

Size

1200×1900×1700 mm

Weight

1500 KG

Place of Origin

Shenzhen,China

Brand Name

New Canghai

Certification

ISO9001,ISO14001,CE

MOQ

1 SET

Supply Ability

100SETS/Month

Packaging

Protective film/Pollywood Case/Container

Shipping Port

Shenzhen Sea Port of China

Trade Terms

FOB CFR CIF

Lead time

15 working days for mold.

45 working days for machine after receiving deposit

Total Employees

200

Payment term

30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight

Shipping Terms

20'GP container ,40'GP container,40'HQ container,LCL by sea
