Alloy Rim Inside Milling Machine
CH-80-09
1 set
Shenzhen Sea Port of China
Quantity
SHENZHEN CYCLEMAKER TECHNOLOGY CO.,LTD | ||||||||||
Bicycle Rim Machine Product Introduction | ||||||||||

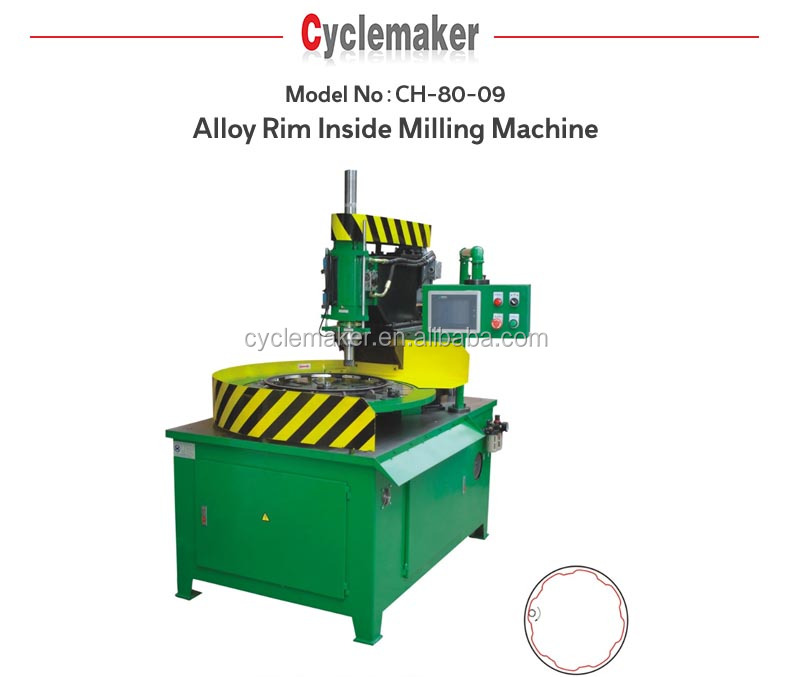

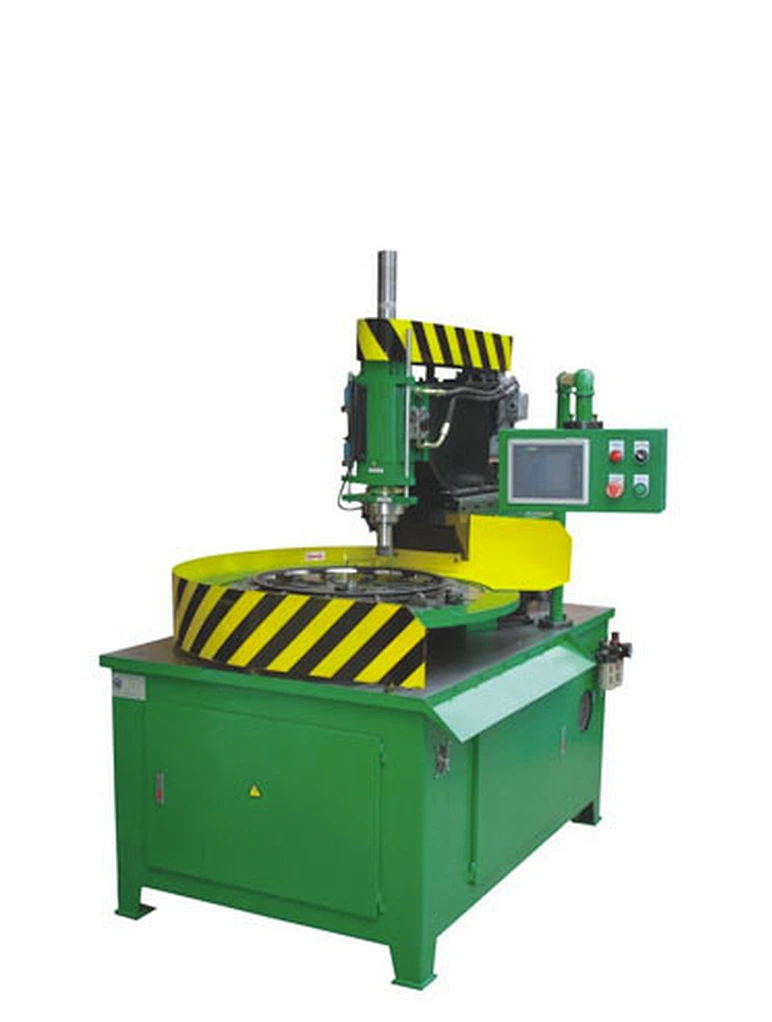

| Alloy Rim Inside Milling Machine | Model No.：CH-80-09 | |||||||||
Bicycle Rim Machine Description： | ||||||||||
1.This kind of Bicycle Rim Machine is used for milling inner arc of the Alloy Rim. | ||||||||||
2. Alloy Rim Inside Milling Machine is efficient, stable and easy for adjusting and changing molds. | ||||||||||
3. Bicycle Rim Machine:Adopting hydraulic cylinder to drive sliding rail to achieve multi-direction motion of milling tool, Sensor switch controls the processing stroke.Serve system can ensure high accuracy of division and processing deepth. | ||||||||||
| Bicycle Rim Machine | Alloy Rim Inside Milling Machine | |||||||||
Function | Milling inner arc | |||||||||
Application | Alloy Rim | |||||||||
Rim dia. | 24"~28" | |||||||||
Rim thickness | Max. 100 mm | |||||||||
Capacity | 20~30 PCS/HR | |||||||||
Operation mode | Semi-auto | |||||||||
Power | 4.5 KW | |||||||||
Voltage | 3P 380V 50Hz | |||||||||
Control method | PLC + Man-machine interface | |||||||||
Start method | Press button | |||||||||
Conpressed air system pressure | 0.4~0.6 MPa | |||||||||
Hydraulic working pressure | 4 MPa | |||||||||
Max. air system pressure | 7 MPa | |||||||||
Color | Green | |||||||||
Size | 1700×1150×1900 mm | |||||||||
Weight | 1200 KG | |||||||||
| Bicycle Rim Machine | Alloy Rim Inside Milling Machine |
Place of Origin | Shenzhen,China |
Brand Name | New Canghai |
Certification | ISO9001,ISO14001,CE |
MOQ | 1 SET |
Supply Ability | 100SETS/Month |
Packaging | Protective film/Pollywood Case/Container |
Shipping Port | Shenzhen Sea Port of China |
Trade Terms | FOB CFR CIF |
Lead time | 15 working days for mold. |
45 working days for machine after receiving deposit | |
Total Employees | 200 |
Payment term | 30% T/T in advance, 70%balance paid before arranging shipment.,Western Union or LC at sight |
Shipping Terms | 20'GP container ,40'GP container,40'HQ container,LCL by sea |
